| Packed with Power - Full of Features |
The all new DTX series is packed with power and loaded with features.
It reflects RE Audio’s years of research and technology. And it takes all of that
knowledge and experience to produce an amplifier line that has these great
looks along with the power and sound that this series touts.
And as our “Entry Level” line of amps, let us not forget that the price makes
for an even more compelling reason to consider the DTX line of amplifiers!
reaudio.com |
| Model |
DTX-600.2 |
DTX-750.4 |
DTX-1600.1 |
DTX-2000.1 |
| Class |
AB |
AB |
D |
D |
| # of Channels |
2 |
4 |
1 |
1 |
| Dynamic Power |
600W |
750W |
1600W |
2000W |
| RMS Power[4Ω] |
60W x 2 |
60W x 4 |
330W x 1 |
410W x 1 |
| RMS Power[2Ω] |
80W x 2 |
80W x 4 |
560W x 1 |
700W x 1 |
| RMS Power[1Ω] |
- |
- |
800W x 1 |
1000W x 1 |
| Bridged Power[4Ω, RMS] |
160W x 1 |
160W x 2 |
- |
- |
|
 |
|

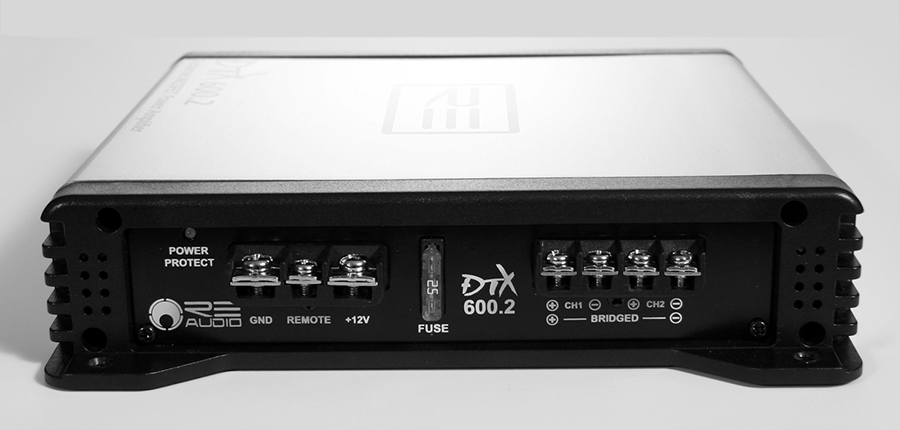

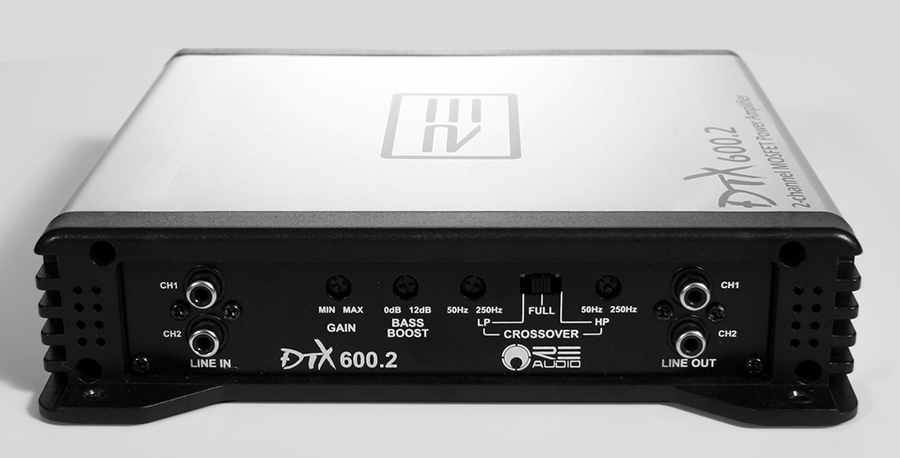

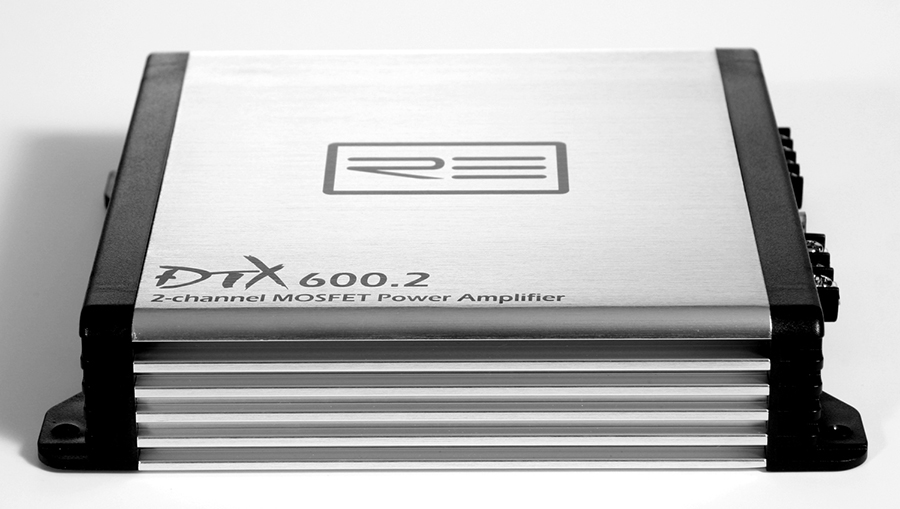

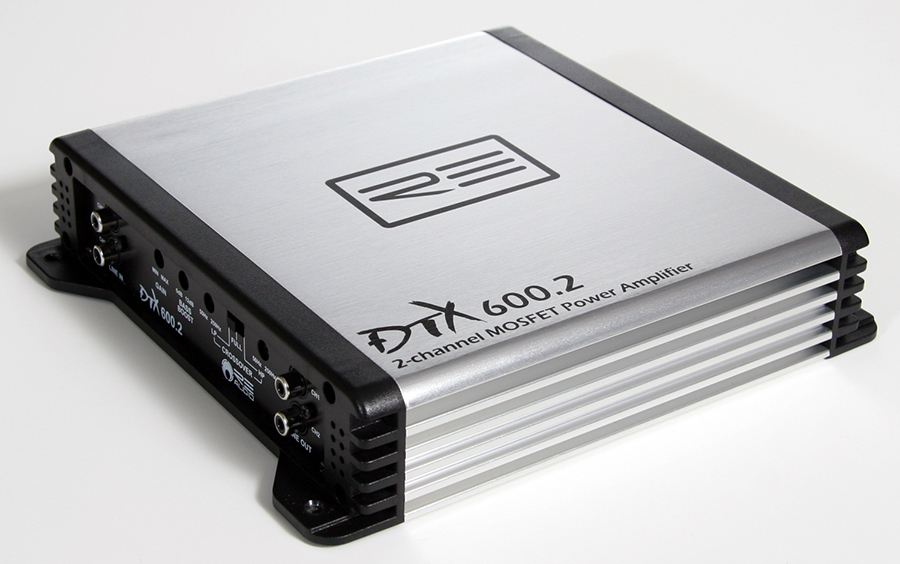

| DTX 600.2 (2CH / Class-AB) |
| Class AB, 2-Channel Full Rage, MOSFET Power Amplifier |
- SKU #: DTX 600.2
- Class: AB
- Channel: 4 CH
- Dynamic Power: 600 W
- RMS Power (4Ω@14.4V): 60 W x 2
- RMS Power (2Ω@14.4V): 80 W x 2
- RMS Bridged Power (4Ω): 160 W x 1
- THD: <0.02 %
- SN Ration: 100 dB
- Frequency Response: 10 Hz ~ 50 KHz
- Crossover Frequency(Low Pass): 50 ~ 250 Hz
- Crossover Frequency(High Pass): 50 ~ 250 Hz
- Damping Factor: 180
- Bass Boost Control: 0 ~ 12 dB
- Input Sensitivity: 0.2 ~ 6 V
- Heatsink Size(WxLxH) [inches]: 8.66 x 9.53 x 1.97
- Heatsink Size(WxLxH) [mm] : 219.96 x 242.06 x 50.04
- Fuse Rating: 25 A x 1
|
 |
|
|
|
|

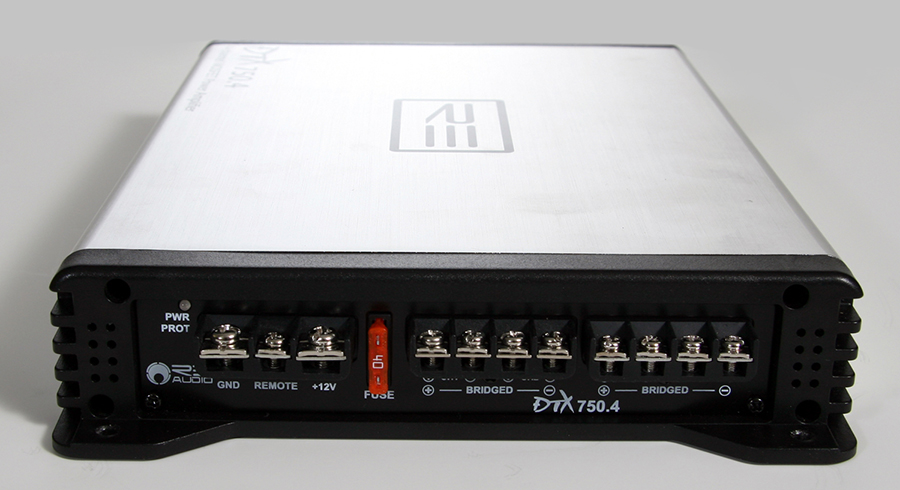

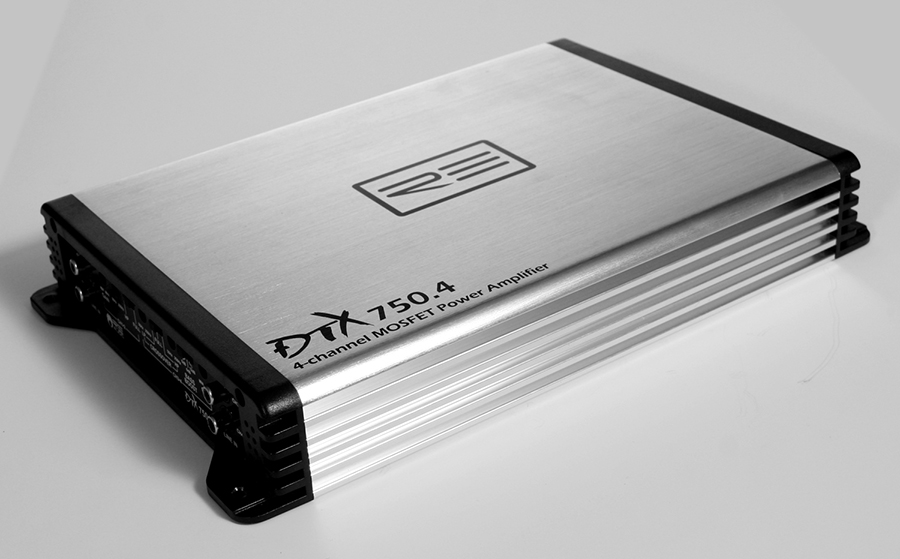

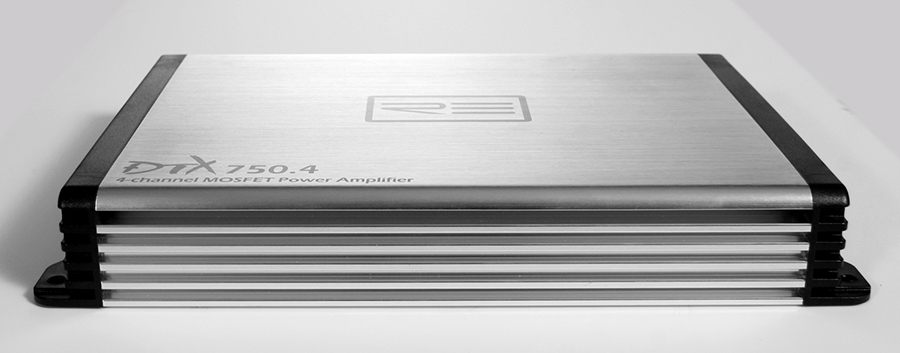

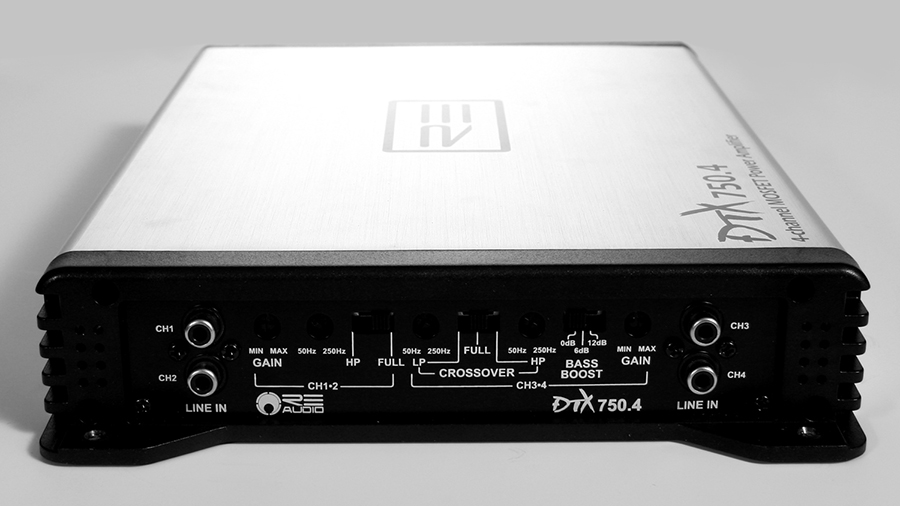

| DTX 750.4 (4CH / Class-AB) |
| Class AB, 4-Channel Full Range, MOSFET Power Amplifier |
- SKU #: DTX 750.4
- Class: AB
- Channel: 4 CH
- Dynamic Power: 750 W
- RMS Power (4Ω@14.4V): 60 W x 4
- RMS Power (2Ω@14.4V): 80 W x 4
- RMS Bridged Power (4Ω): 160 W x 2
- THD: <0.02 %
- SN Ration: 100 dB
- Frequency Response: 10 Hz ~ 50 KHz
- Crossover Frequency(Low Pass): 50 ~ 250 Hz
- Crossover Frequency(High Pass): 50 ~ 250 Hz
- Damping Factor: 180
- Bass Boost Control: 0 ~ 12 dB
- Input Sensitivity: 0.2 ~ 6 V
- Heatsink Size(WxLxH) [inches]: 8.66 x 13.43 x 1.97
- Heatsink Size(WxLxH) [mm] : 219.96 x 341.12 x 50.04
- Fuse Rating: 40 A x 1
|
|
|
|
|
|

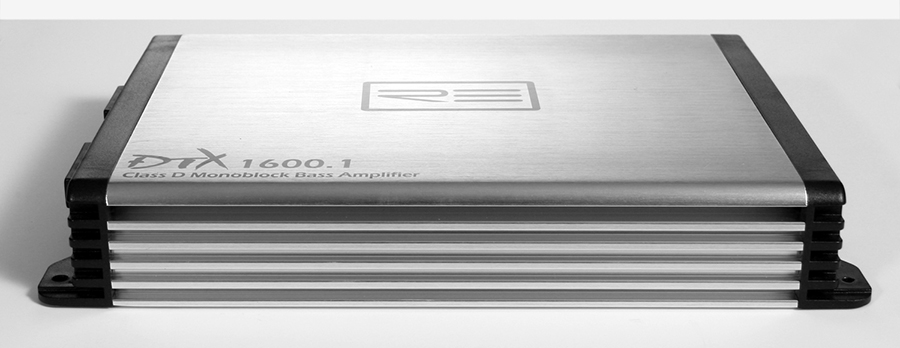

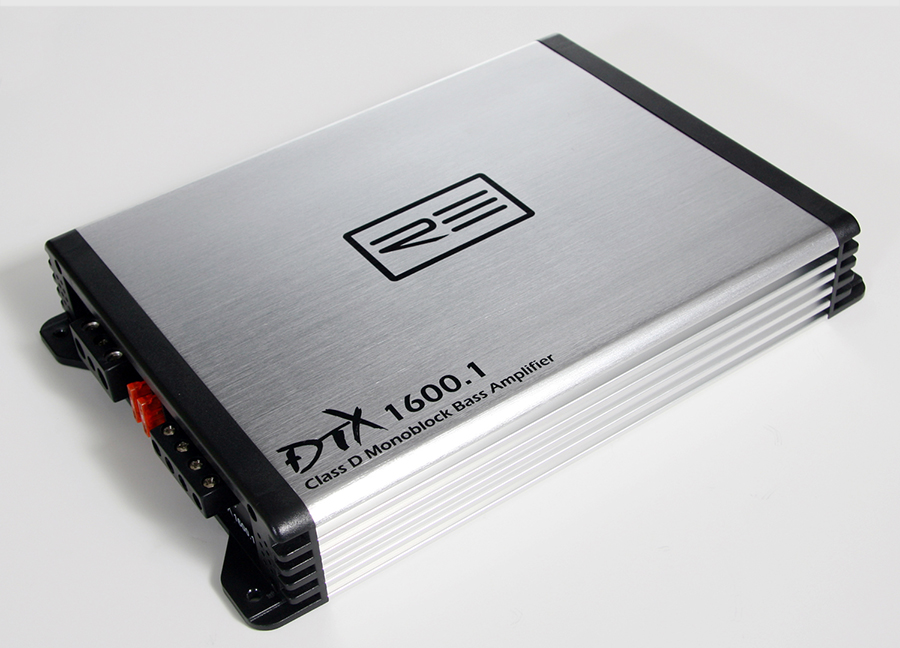

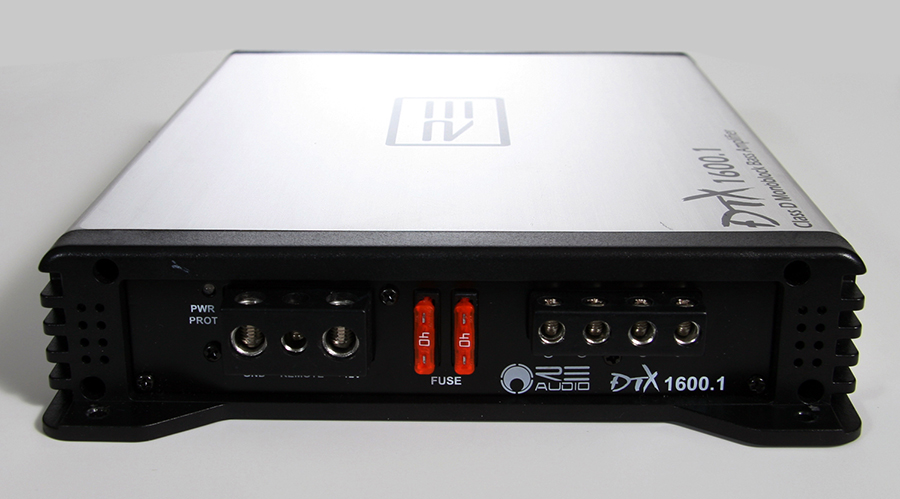

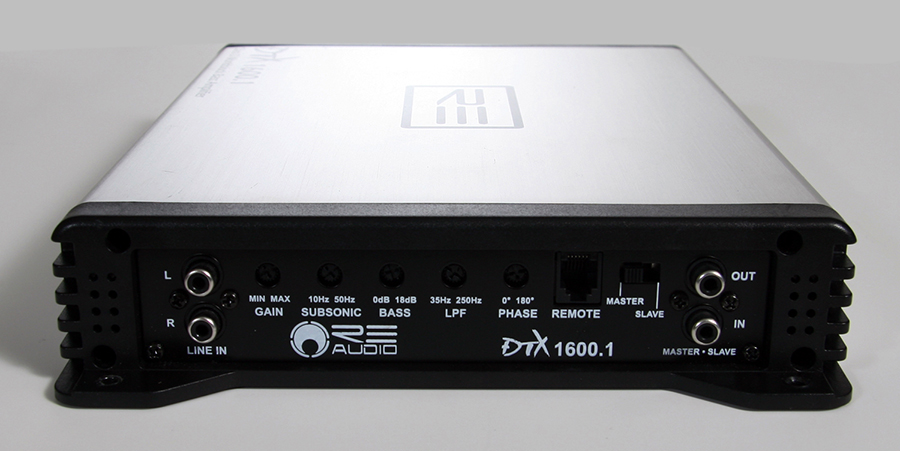

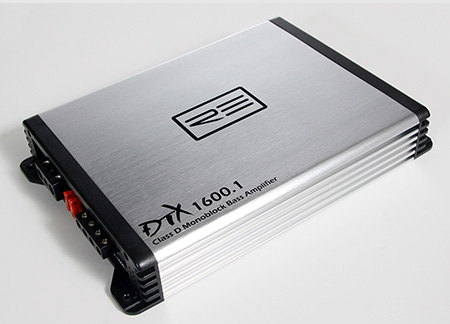

| DTX 1600.1 (Mono / Class-D) |
| Class D, Monoblock Bass Amplifier |
- SKU #: DTX 1600.1
- Class: D
- Channel: 1 CH
- Dynamic Power: 1600 W
- RMS Power (4Ω@14.4V): 330 W x 1
- RMS Power (2Ω@14.4V): 560 W x 1
- RMS Power (1Ω@14.4V): 800 W x 1
- THD: <0.05 %
- SN Ration: 100 dB
- Frequency Response: 10 Hz ~ 250 Hz
- Crossover Frequency(Low Pass): 35 ~ 250 Hz
- Subsonic Filter Frequency: 10 ~ 50 Hz
- Damping Factor: 180
- Bass Boost Control: 0 ~ 18 dB
- Wired Remote Control: Yes
- Input Sensitivity: 0.2 ~ 6 V
- Heatsink Size(WxLxH) [inches]: 8.66 x 12.64 x 1.97
- Heatsink Size(WxLxH) [mm] : 219.96 x 321.06 x 50.04
- Fuse Rating: 40 A x 2
|
|
|
|
|
|

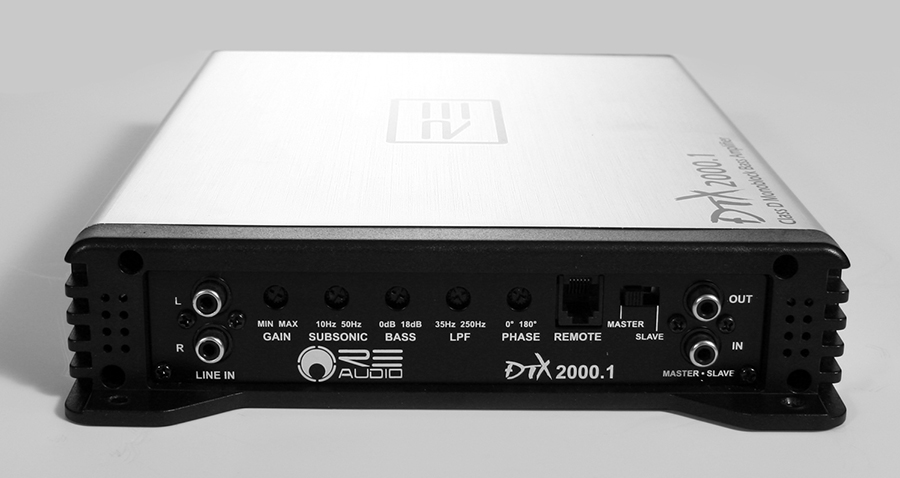

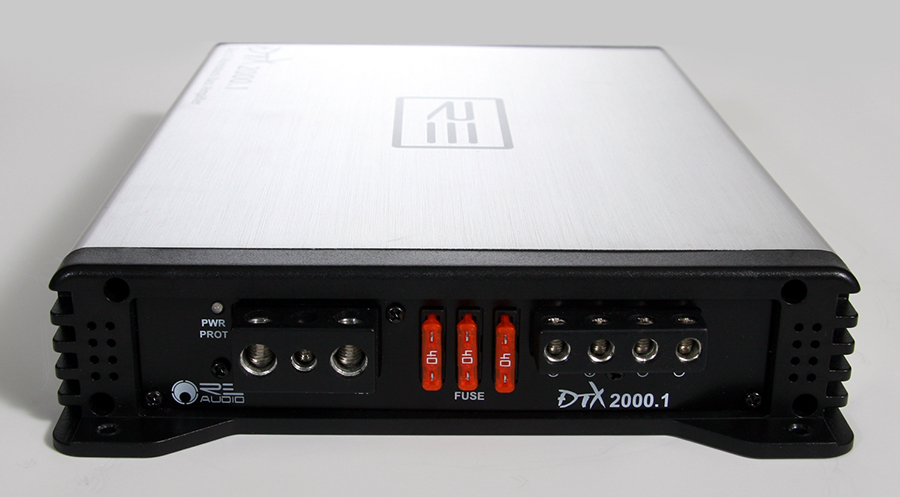

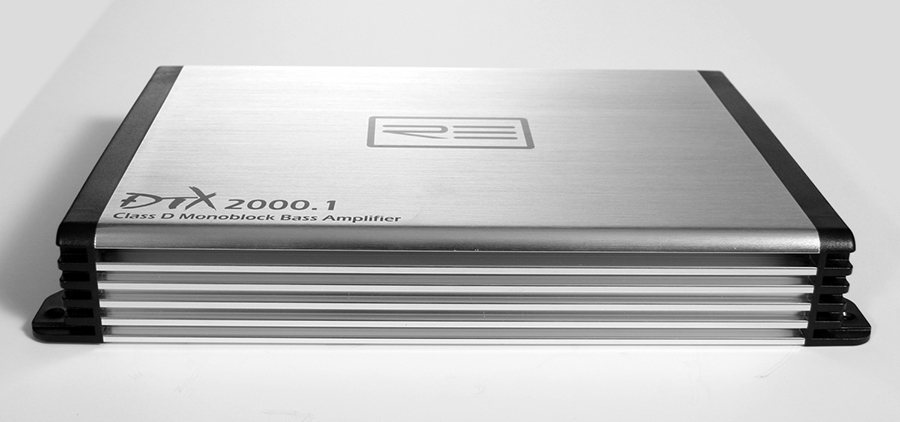

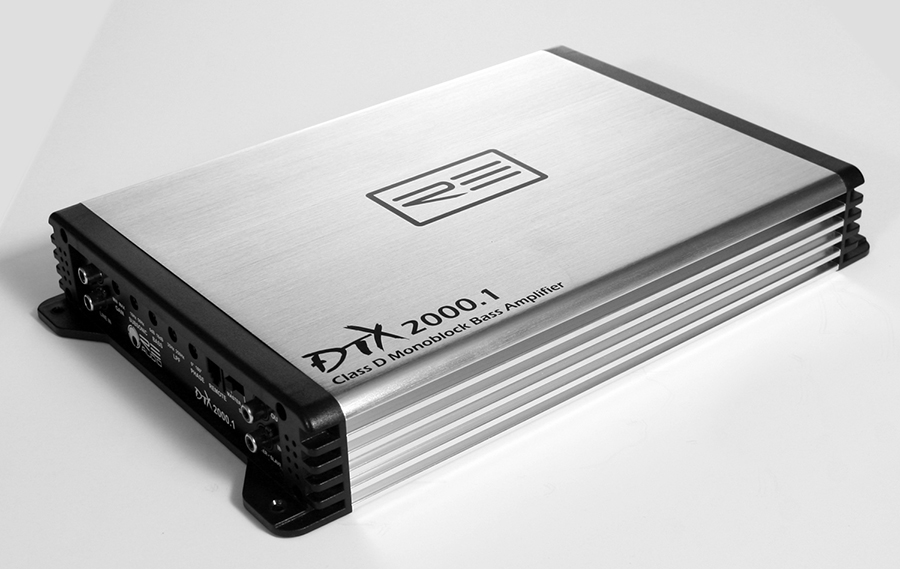

| DTX 2000.1 (Mono / Class-D) |
| Class D, Monoblock Bass Amplifier |
- SKU #: DTX 2000.1
- Class: D
- Channel: 1 CH
- Dynamic Power: 2000 W
- RMS Power (4Ω@14.4V): 410 W x 1
- RMS Power (2Ω@14.4V): 700 W x 1
- RMS Power (1Ω@14.4V): 1000 W x 1
- THD: <0.05 %
- SN Ration: 100 dB
- Frequency Response: 10 Hz ~ 250 Hz
- Crossover Frequency(Low Pass): 35 ~ 250 Hz
- Subsonic Filter Frequency: 10 ~ 50 Hz
- Damping Factor: 180
- Bass Boost Control: 0 ~ 18 dB
- Wired Remote Control: Yes
- Input Sensitivity: 0.2 ~ 6 V
- Heatsink Size(WxLxH) [inches]: 8.66 x 13.43 x 1.97
- Heatsink Size(WxLxH) [mm] : 219.96 x 341.12 x 50.04
- Fuse Rating: 40 A x 3
|
|
|
|
|
