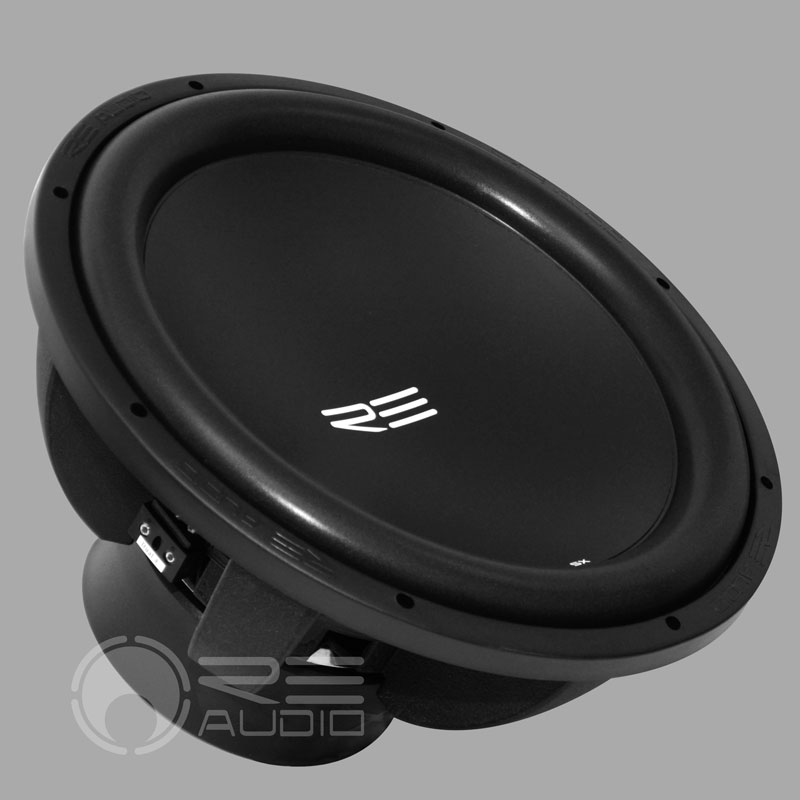

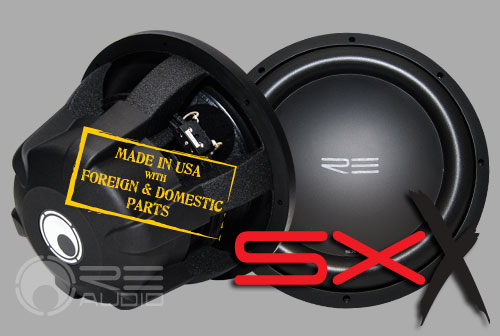

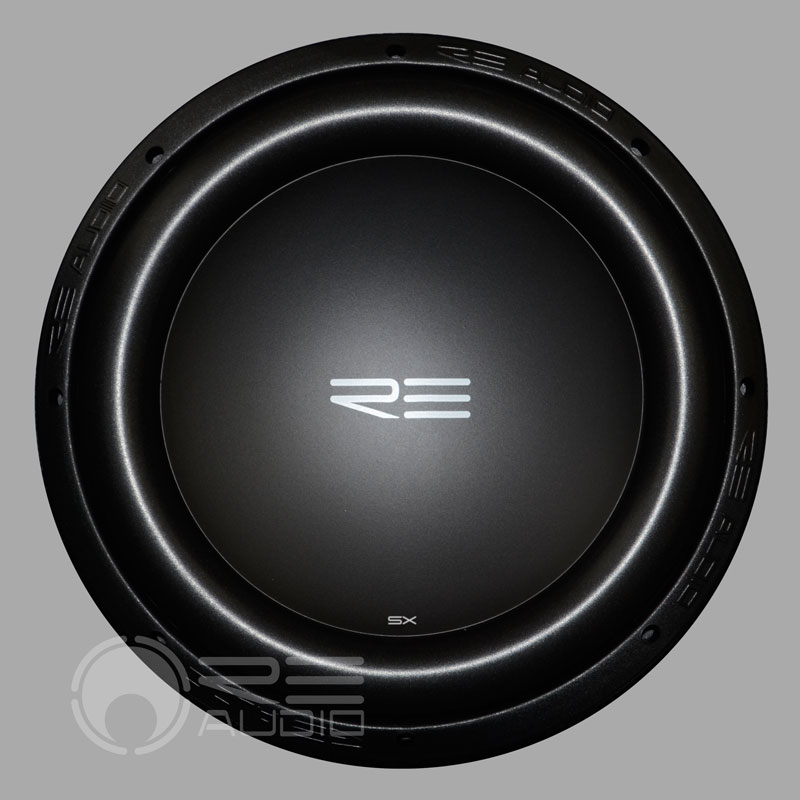

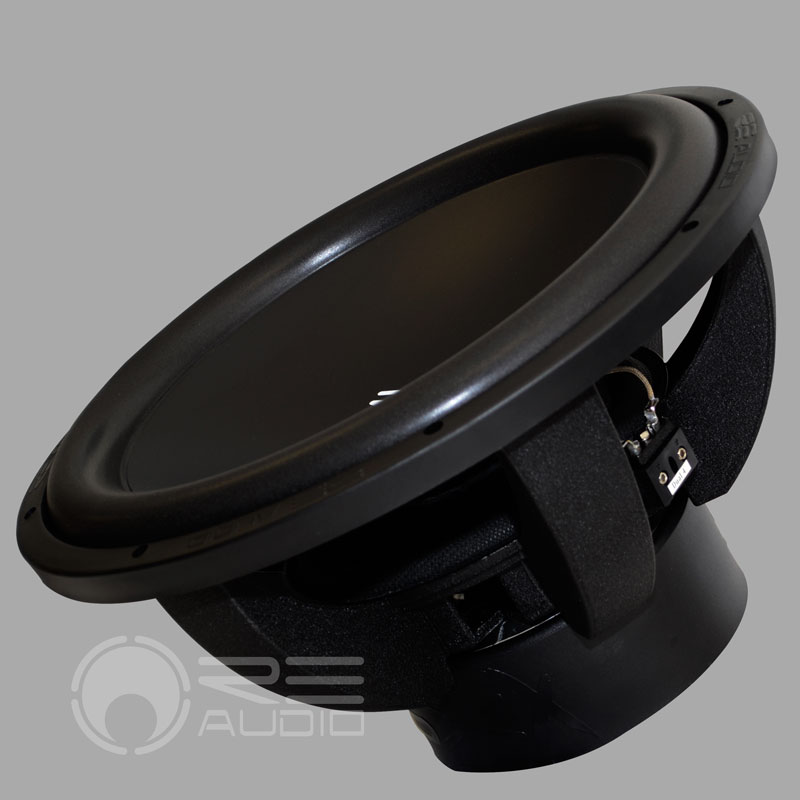

The SXX v2 SERIES has been improved over the SXX line. Power handling is now at 1200W. The efficiency has increased. So has its excursion capability. The SXX v2 SERIES also touts a newly designed motor, which along with the design of the cast basket and rubber-booted triple stack magnet assembly make for a great look.
Sizes: 10", 12", 15", and 18" (Dual 2/4 ohm)
- Dual Composite 2-piece Cone
- Rubatek Foam Surround
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3 " 4-layer Aluminum Flat Wire Voice Coil
- FEA-optimized Motor Structure
- Triple Stack Magnets
- Progressive Spiders
- Wrap around Rubber Gasket
Enclosure Recommendations
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 1.0@35Hz | 1.25@34Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 1.5@35Hz | 2.0@33Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 3.0@35Hz | 4.0@34Hz |
*N/R: Not Recommended
Product Dimensions
10"
- Mounting Depth - 6.5 inch
- Mounting Hole Diameter - 9.25 inch
- Overall Diameter - 11 inch
- Bolt Hole Circle - 10.125 inch
- Motor Width - 7 inch
- Motor Depth - 3.75 inch
- Basket Depth - 2.75 inch
- Displacement - 0.14 cu. ft.
- Weight - 24.5 lbs.
12"
- Mounting Depth - 7 inch
- Mounting Hole Diameter - 11.2 inch
- Overall Diameter - 12.5 inch
- Bolt Hole Circle - 11.5625 inch
- Motor Width - 7 inch
- Motor Depth - 3.75 inch
- Basket Depth - 3.25 inch
- Displacement - 0.15 cu. ft.
- Weight - 24.9 lbs.
15"
- Mounting Depth - 8.5 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.5 inch
- Bolt Hole Circle - 14.625 inch
- Motor Width - 7 inch
- Motor Depth - 3.75 inch
- Basket Depth - 4.75 inch
- Displacement - 0.17 cu. ft.
- Weight - 27.9 lbs.
T/S Parameters
10"
- Thermal Power Handling -Pe: 1200 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 24 mm
- Efficiency -SPL 1W/1m: 86.1 dB SPL
- Volume Displacement: 0.14 cubic feet
12"
- Thermal Power Handling -Pe: 1200 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 24 mm
- Efficiency -SPL 1W/1m: 88.8 dB SPL
- Volume Displacement: 0.15 cubic feet
15"
- Thermal Power Handling -Pe: 1200 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 25 mm
- Efficiency -SPL 1W/1m: 90.6 dB SPL
- Volume Displacement: 0.17 cubic feet

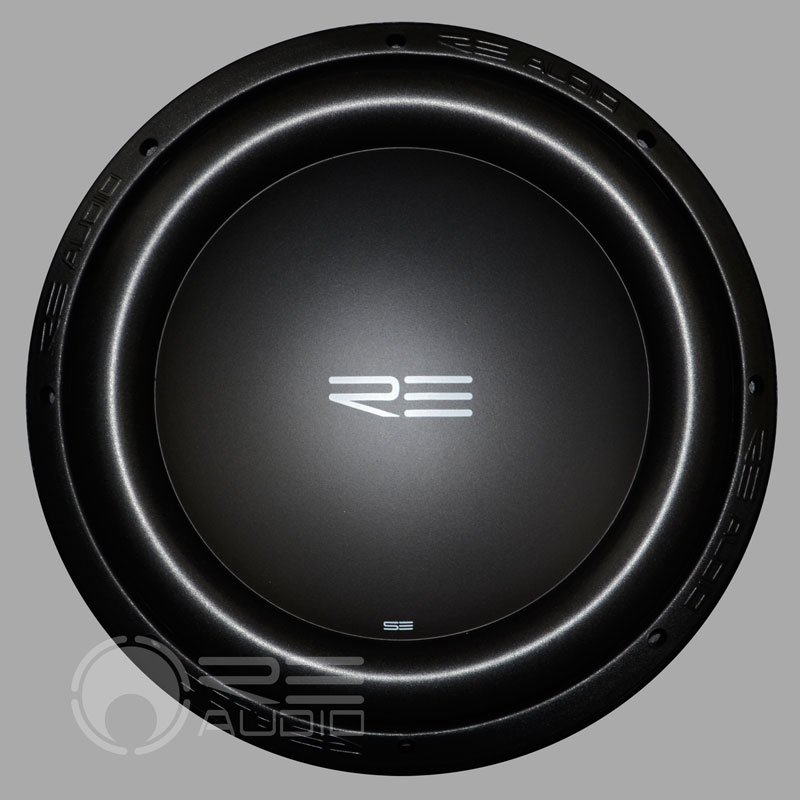

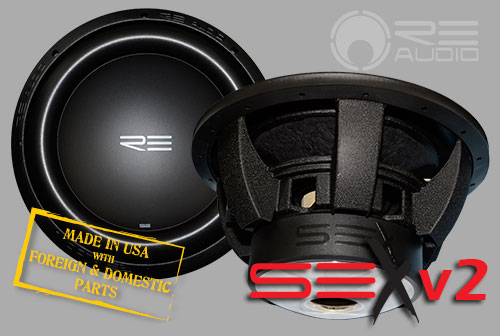

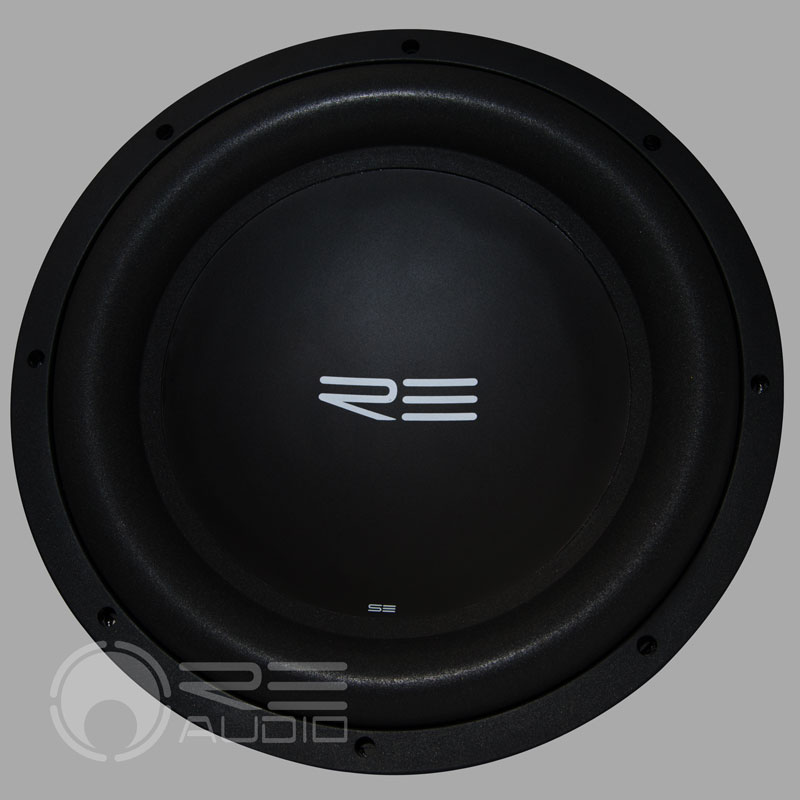

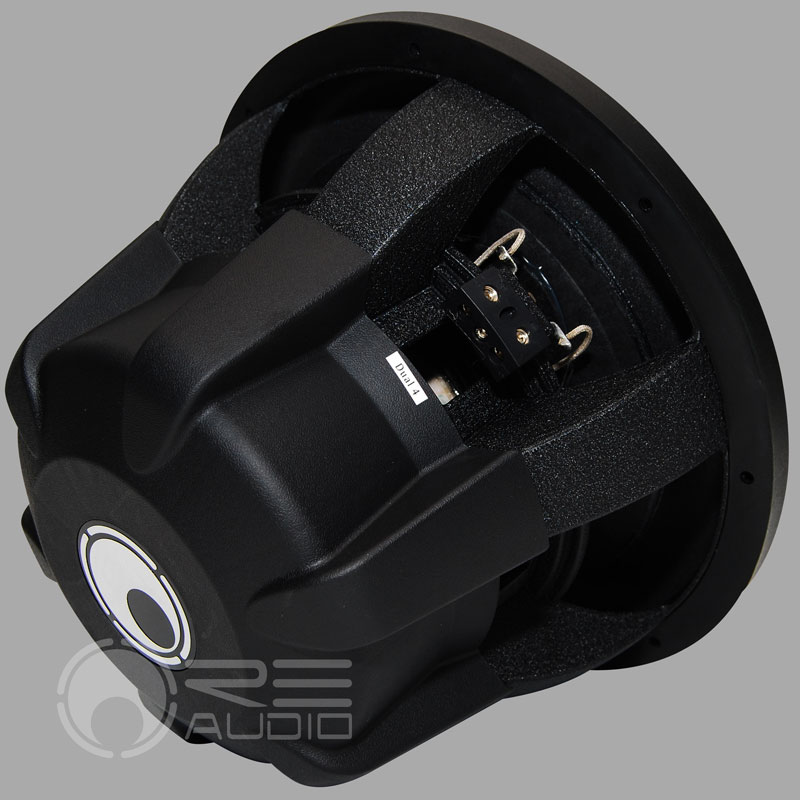

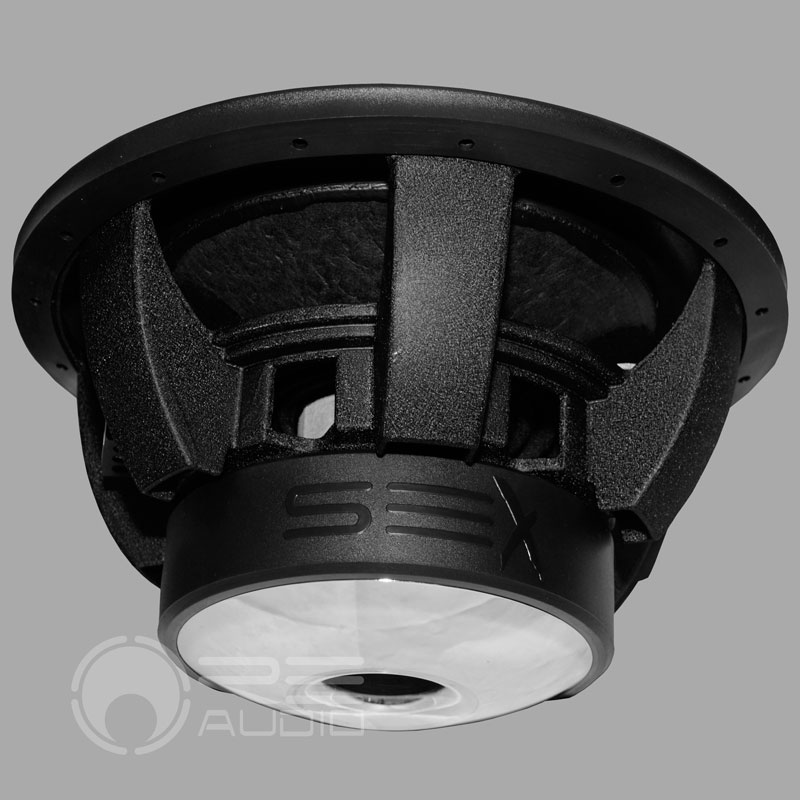

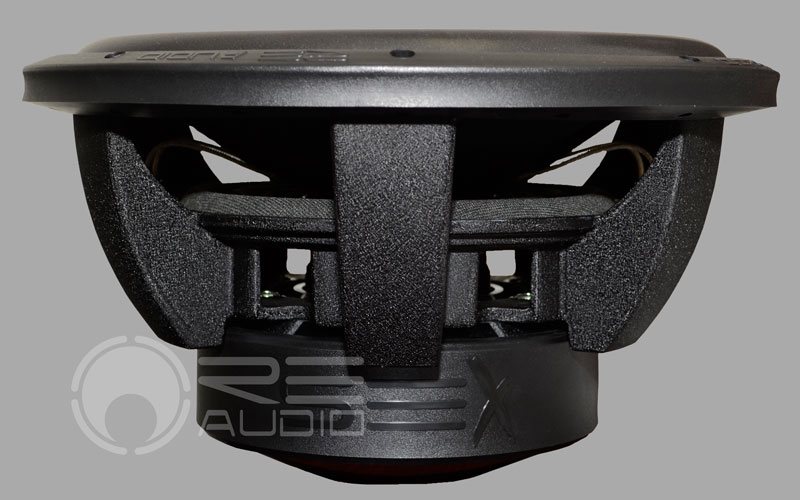

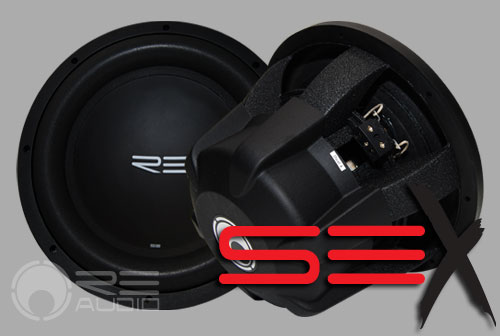

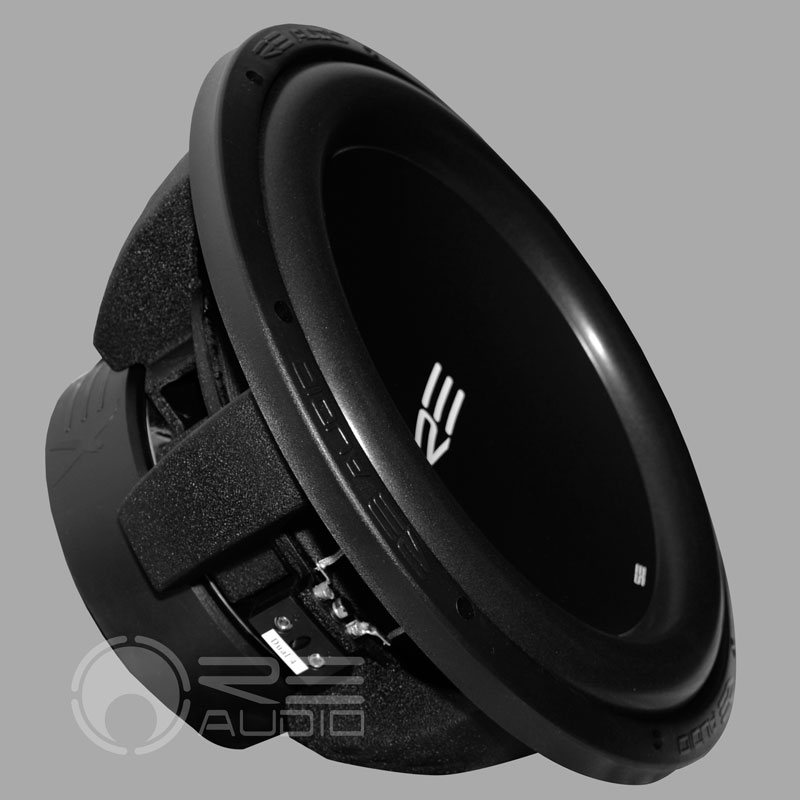

The SEX v2 SERIES is an improvement in every way over our most popular and best selling subwoofer series. The SEX v2 SERIES offers increased power handling, excursion as well as higher efficiency over the original SEX series. The SEX v2 SERIES touts a totally new look with its completely redesigned motor and magnetic assembly.
Sizes: 10", 12", and 15" (Dual 2 or 4 ohm)
- Dual Composite 2-piece Cone
- Rubatek Foam Surround
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3 " 4-layer Aluminum Voice Coil
- FEA-optimized Motor Structure
- Double Stack Magnets
- Progressive Spiders
- Wrap around Rubber Gasket
Enclosure Recommendations
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.4 | 0.65 |
| Ported: | 1.0@35Hz | 1.25@34Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.75 | 1.0 |
| Ported: | 1.5@35Hz | 2.0@33Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | 1.5 | 2.0 |
| Ported: | 3.0@35Hz | 4.0@34Hz |
Product Dimensions
10"
- Mounting Depth - 5.5 inch
- Mounting Hole Diameter - 9.25 inch
- Overall Diameter - 11 inch
- Bolt Hole Circle - 10.125 inch
- Motor Width - 7 inch
- Motor Depth - 3 inch
- Basket Depth - 2.94 inch
- Displacement - 0.14 cu. ft.
- Weight - 20.32 lbs.
12"
- Mounting Depth - 6.5 inch
- Mounting Hole Diameter - 11.2 inch
- Overall Diameter - 12.5 inch
- Bolt Hole Circle - 11.5625 inch
- Motor Width - 7 inch
- Motor Depth - 3 inch
- Basket Depth - 3.5 inch
- Displacement - 0.15 cu. ft.
- Weight - 21.67 lbs.
15"
- Mounting Depth - 7.83 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.5 inch
- Bolt Hole Circle - 14.625 inch
- Motor Width - 7 inch
- Motor Depth - 3 inch
- Basket Depth - 4.83 inch
- Displacement - 0.17 cu. ft.
- Weight - 23.02 lbs.
T/S Parameters
10"
- Thermal Power Handling -Pe: 750 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 19 mm
- Efficiency -SPL 1W/1m: 88.7 dB SPL
- Volume Displacement: 0.14 cubic feet
12"
- Thermal Power Handling -Pe: 750 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 20 mm
- Efficiency -SPL 1W/1m: 86.9 dB SPL
- Volume Displacement: 0.15 cubic feet
15"
- Thermal Power Handling -Pe: 750 W
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- One-Way, Linear Excursion -Xmax: 21 mm
- Efficiency -SPL 1W/1m: 84.4 dB SPL
- Volume Displacement: 0.17 cubic feet

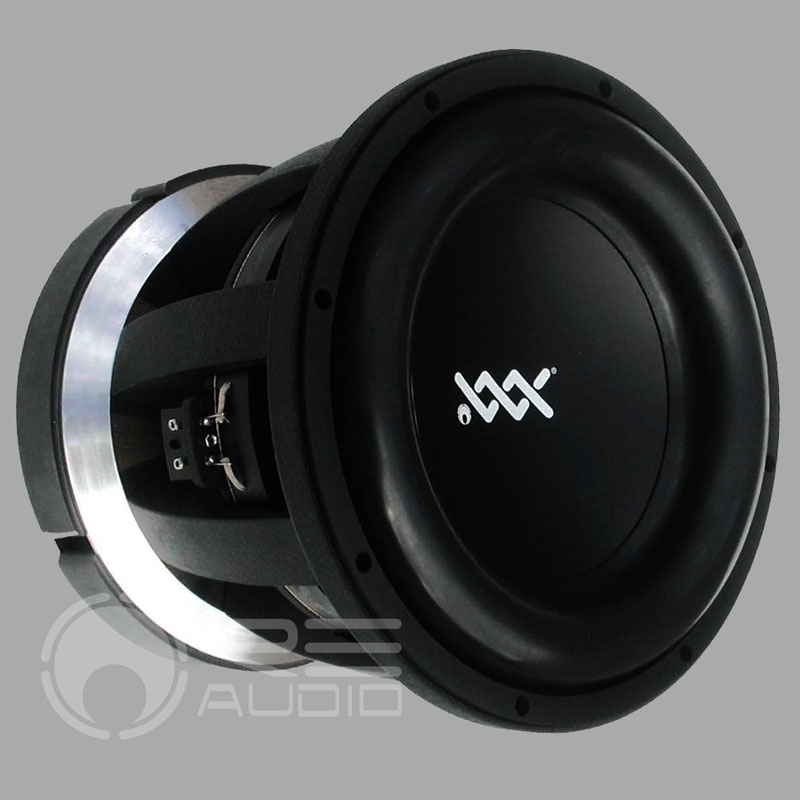

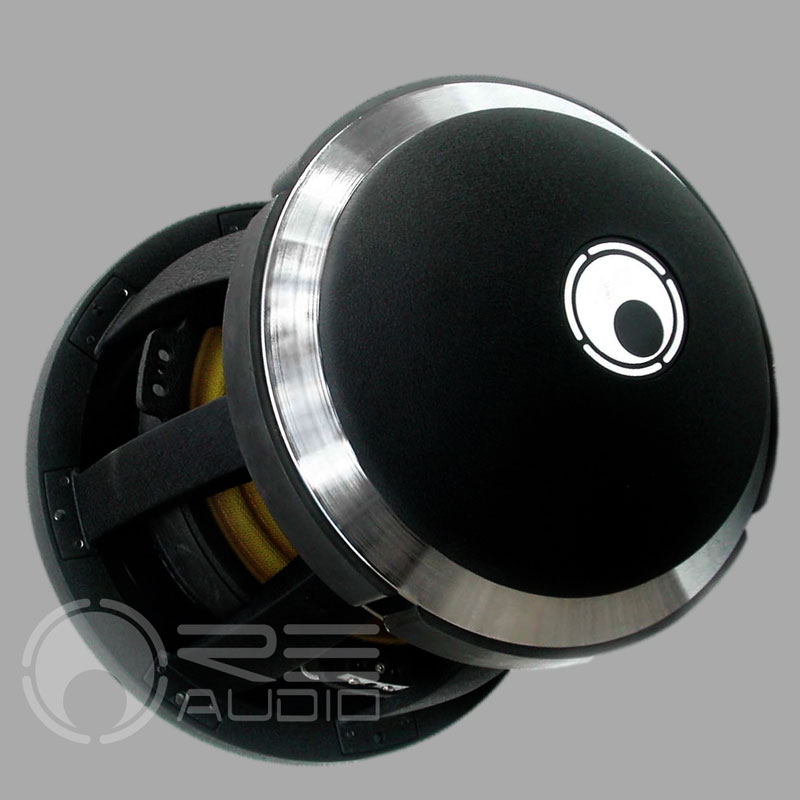

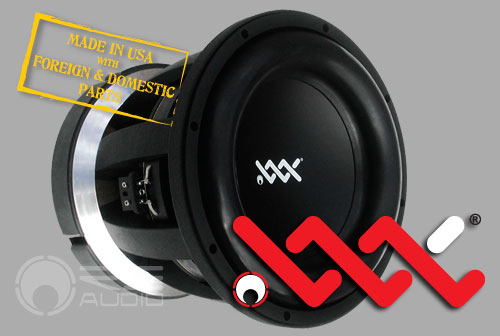

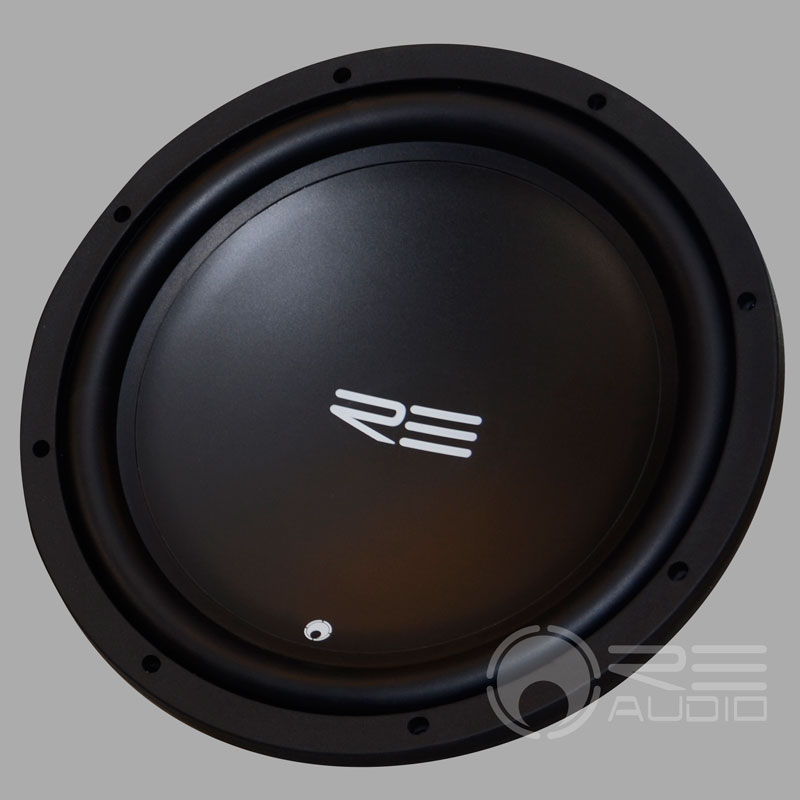

Designed to be the ultimate in sonic performance and output, the XXX SERIES truly is engineered for excess.
"It makes all the sounds I want to hear from a subwoofer. It was tight, clean, and imaged perfectly. RE has gone for the gold with their XXX line of subs, and I have to say they earned it!" — PAS Magazine —
Sizes: 12", 15"," and 18" (Dual 2 or 4 ohm)
- Dual Composite 2-piece Cone
- Rubber Surround
- Integrated Gasket
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3" 8-layer Aluminum Flat Wire Voice Coil
- FEA Optimized Motor Structure
- VMS Vented Magnet System
- Dual Progressive Spiders
- Integrated Tinsel Lead
Enclosure Recommendations
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.85 | 1.1 |
| Ported: | 1.7@35Hz | 2.2@34Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | 1.6 | 2.1 |
| Ported: | 3.2@35Hz | 4.0@33Hz |
| 18" | Compact | Optimal |
|---|---|---|
| Sealed: | 3.3 | 4.0 |
| Ported: | 6.0@35Hz | 9.0@34Hz |
Product Dimensions
12"
- Mounting Depth - 12.75 inch
- Mounting Hole Diameter - 11.5 inch
- Overall Diameter - 13 inch
- Bolt Hole Circle - 12.25 inch
- Motor Width - 10.5 inch
- Motor Depth - 5 inch
- Basket Depth - 7.75 inch
- Displacement - 0.24 cu. ft.
- Weight - 72 lbs.
15"
- Mounting Depth - 13.5 inch
- Mounting Hole Diameter - 14.5 inch
- Overall Diameter - 16 inch
- Bolt Hole Circle - 15.25 inch
- Motor Width - 10.5 inch
- Motor Depth - 5 inch
- Basket Depth - 8.5 inch
- Displacement - 0.27 cu. ft.
- Weight - 76 lbs.
18"
- Mounting Depth - 14.75 inch
- Mounting Hole Diameter - 17.375 inch
- Overall Diameter - 19 inch
- Bolt Hole Circle - 18.25 inch
- Motor Width - 10.5 inch
- Motor Depth - 5 inch
- Basket Depth - 9.75 inch
- Displacement - 0.30 cu. ft.
- Weight - 78 lbs.
T/S Parameters
12"
- Electrical Q Value -Qes: 0.46
- Mechanical Q Value -Qms: 3.29
- Total Speaker Q Value -Qts: 0.404
- Free Air Resonance -Fs: 21.00 Hz
- Equivalent Compliance -Vas: 74.0 liters
- One-Way, Linear Excursion -Xmax: 54 mm
- Efficiency -SPL 1W/1m: 83.76 dB SPL
- Effective Piston Area -Sd: 480 cm^2
- DC Resistance -Re: 4.2 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 2000 W
- Force Factor -Bl: 18.16
15"
- Electrical Q Value -Qes: 0.58
- Mechanical Q Value -Qms: 3.62
- Total Speaker Q Value -Qts: 0.501
- Free Air Resonance -Fs: 19.10 Hz
- Equivalent Compliance -Vas: 207.0 liters
- One-Way, Linear Excursion -Xmax: 54 mm
- Efficiency -SPL 1W/1m: 85.81 dB SPL
- Effective Piston Area -Sd: 810 cm^2
- DC Resistance -Re: 4.2 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 2000 W
- Force Factor -Bl: 18.16
18"
- Electrical Q Value -Qes: 0.68
- Mechanical Q Value -Qms: 2.82
- Total Speaker Q Value -Qts: 0.55
- Free Air Resonance -Fs: 15.60 Hz
- Equivalent Compliance -Vas: 482.0 liters
- One-Way, Linear Excursion -Xmax: 54 mm
- Efficiency -SPL 1W/1m: 86.20 dB SPL
- Effective Piston Area -Sd: 1210 cm^2
- DC Resistance -Re: 4.2 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 2000 W
- Force Factor -Bl: 18.16

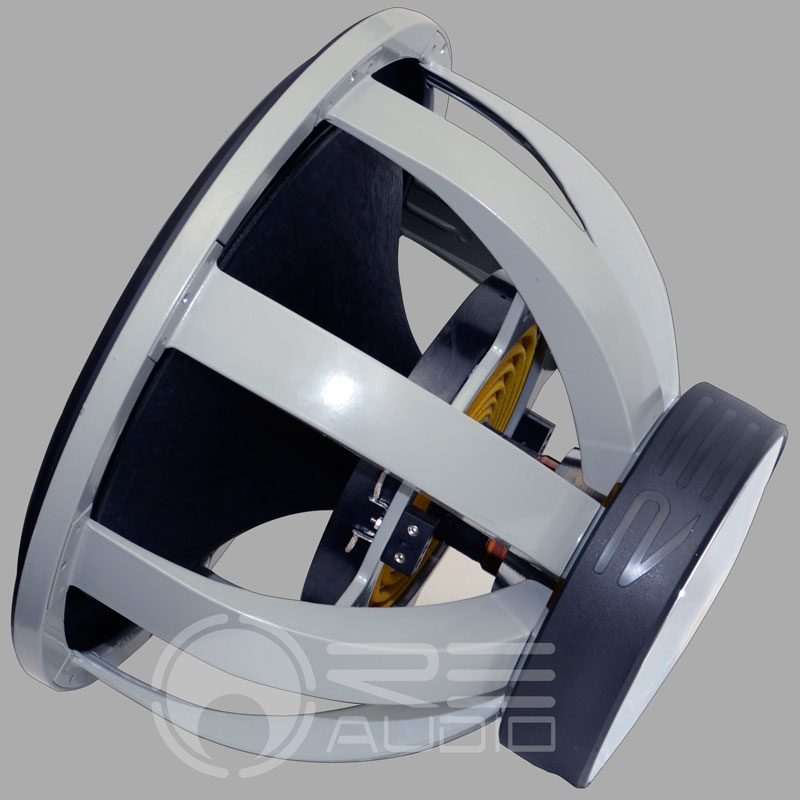

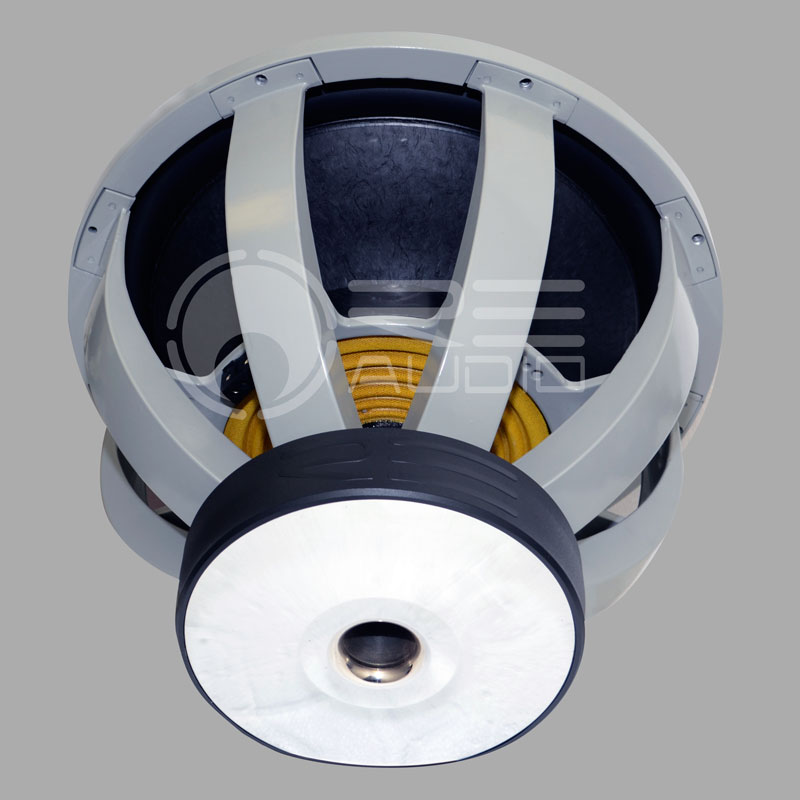

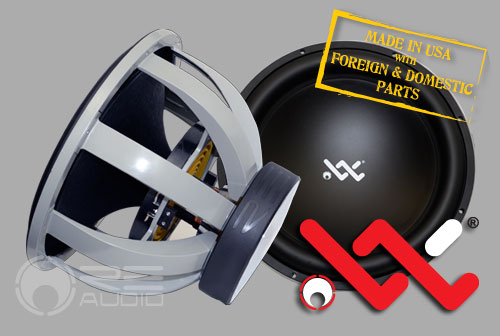

Our tranducer engineers have worked tirelessly to come up with a way to offer the sound that you have come to know and love in our "top of the line" XXX series, but for less.
Sizes: 12", 15"," and 18" (Dual 2 or 4 ohm)
- Dual Composite 2-piece Cone
- Ultra Rubber Surround
- Cast Aluminum Gasket
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3" 8-layer Aluminum Flat Wire Voice Coil
- FEA-optimized Motor Structure
- Vented Magnet System
- Dual Progressive Spiders
- Integrated Tinsel Lead
- Default Basket Color: Black*
- * Optional custom basket colors are available upon request.
For example, Blue, Gold, Gray(shown in the picture), Red, Silver, etc.
Enclosure Recommendations
* To Be Announced
Product Dimensions
12"
- Mounting Depth - 10.53 inch
- Mounting Hole Diameter - 11.5 inch
- Overall Diameter - 13 inch
- Bolt Hole Circle - 12.25 inch
- Motor Width - 9.87 inch
- Motor Depth - 3.03 inch
- Basket Depth - 7.75 inch
- Displacement - 0.24 cu. ft.
- Weight - 58.5 lbs.
15"
- Mounting Depth - 11.53 inch
- Mounting Hole Diameter - 14.5 inch
- Overall Diameter - 16 inch
- Bolt Hole Circle - 15.25 inch
- Motor Width - 9.84 inch
- Motor Depth - 3.03 inch
- Basket Depth - 8.5 inch
- Displacement - 0.27 cu. ft.
- Weight - 62 lbs.
18"
- Mounting Depth - 12.5 inch
- Mounting Hole Diameter - 17.375 inch
- Overall Diameter - 19 inch
- Bolt Hole Circle - 18.25 inch
- Motor Width - 9.84 inch
- Motor Depth - 3.03 inch
- Basket Depth - 9.75 inch
- Displacement - 0.30 cu. ft.
- Weight - 63 lbs.
T/S Parameters
* To Be Announced

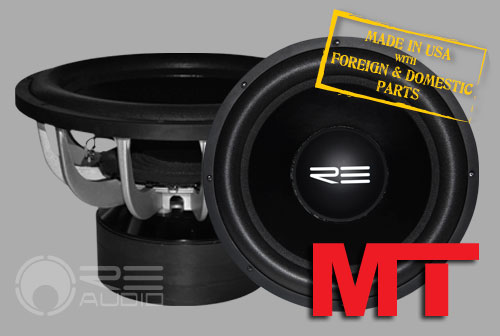

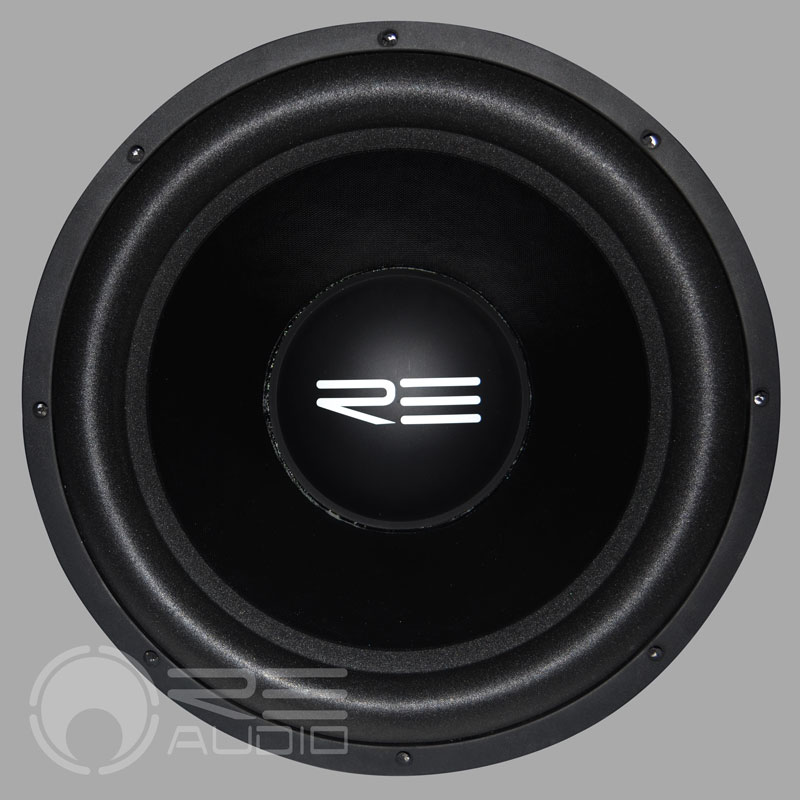

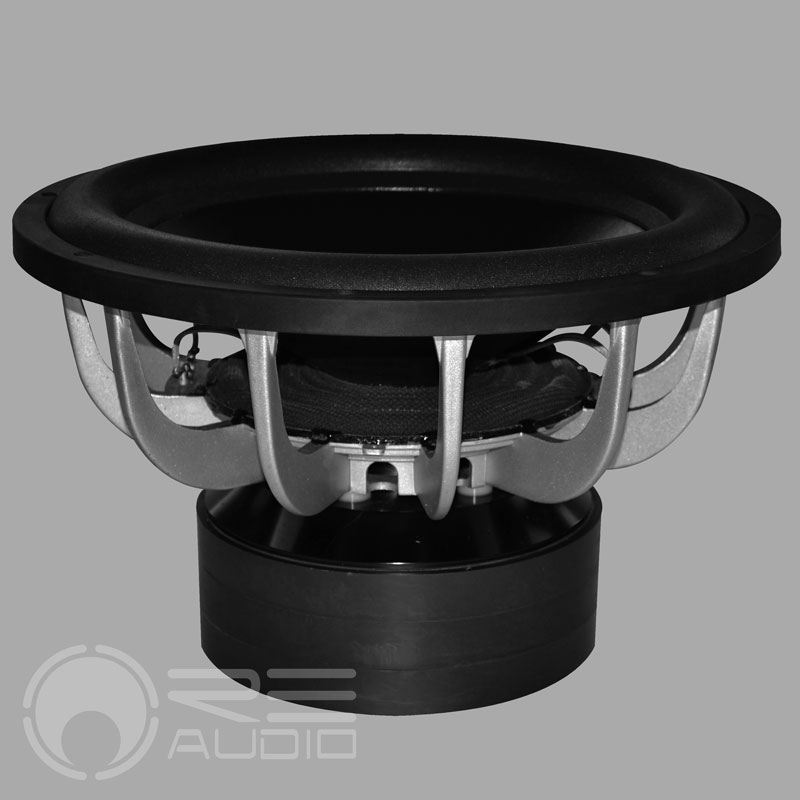

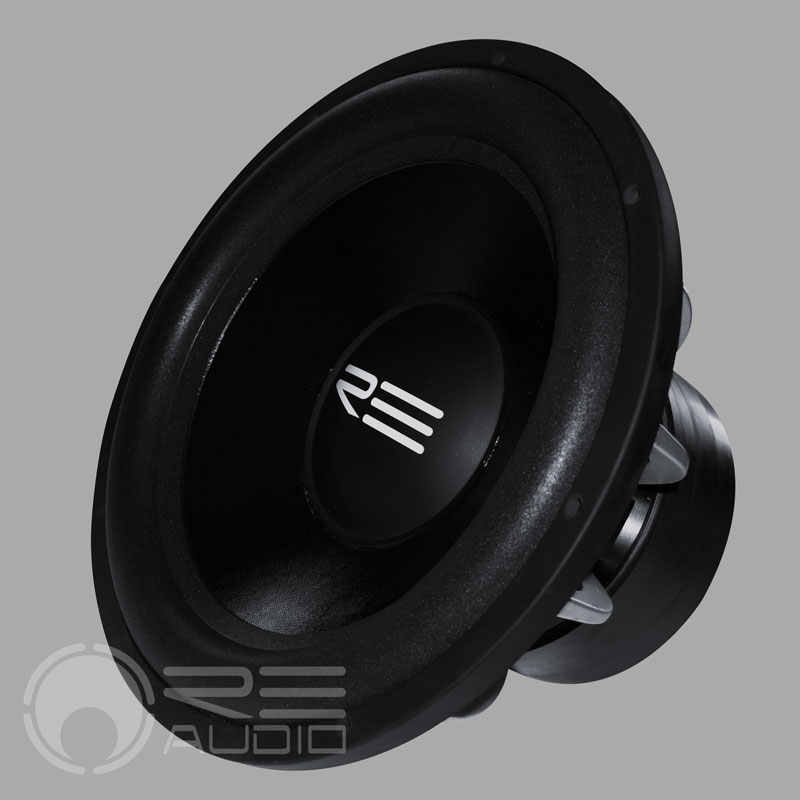

Designed for a single sonic goal: "To be the ultimate in SPL." The MT SERIES is built for brutality.
Sizes: 10", 12", 15"," and 18" (Customizable coil options)
- Kraft Pulp Cone w/Carbon Fibers in Matrix
- Rubatek Foam Surround
- Cast Aluminum Basket
- Foamed Core Dust Cap
- Tork-Tite Terminal
- 8-layer Aluminum Voice Coil
- FEA Optimized Motor Structure
- Triple Stack Magnets
- Dual, Triple, or Quad Progressive Spiders
- Wrap Around Rubber Gasket
Enclosure Recommendations
* Varies with each cutom configurations
Product Dimensions
10"
- Mounting Depth - 7.25 inch
- Mounting Hole Diameter - 9.25 inch
- Overall Diameter - 11 inch
- Bolt Hole Circle - 10.125 inch
- Motor Width - 9 inch
- Motor Depth - 4.5 inch
- Basket Depth - 2.75 inch
- Displacement - 0.18 cu. ft.
- Weight - 57 lbs.
12"
- Mounting Depth - 8 inch
- Mounting Hole Diameter - 11 inch
- Overall Diameter - 12.5 inch
- Bolt Hole Circle - 11.75 inch
- Motor Width - 9 inch
- Motor Depth - 4.5 inch
- Basket Depth - 3.25 inch
- Displacement - 0.19 cu. ft.
- Weight - 58 lbs.
15"
- Mounting Depth - 9 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.5 inch
- Bolt Hole Circle - 14.75 inch
- Motor Width - 9 inch
- Motor Depth - 4.5 inch
- Basket Depth - 4.5 inch
- Displacement - 0.21 cu. ft.
- Weight - 61 lbs.
18"
- Mounting Depth - 10.75 inch
- Mounting Hole Diameter - 16.75 inch
- Overall Diameter - 18.5 inch
- Bolt Hole Circle - 17.5 inch
- Motor Width - 9 inch
- Motor Depth - 4.5 inch
- Basket Depth - 6.25 inch
- Displacement - 0.25 cu. ft.
- Weight - 62 lbs.
T/S Parameters
* Varies with each cutom configurations

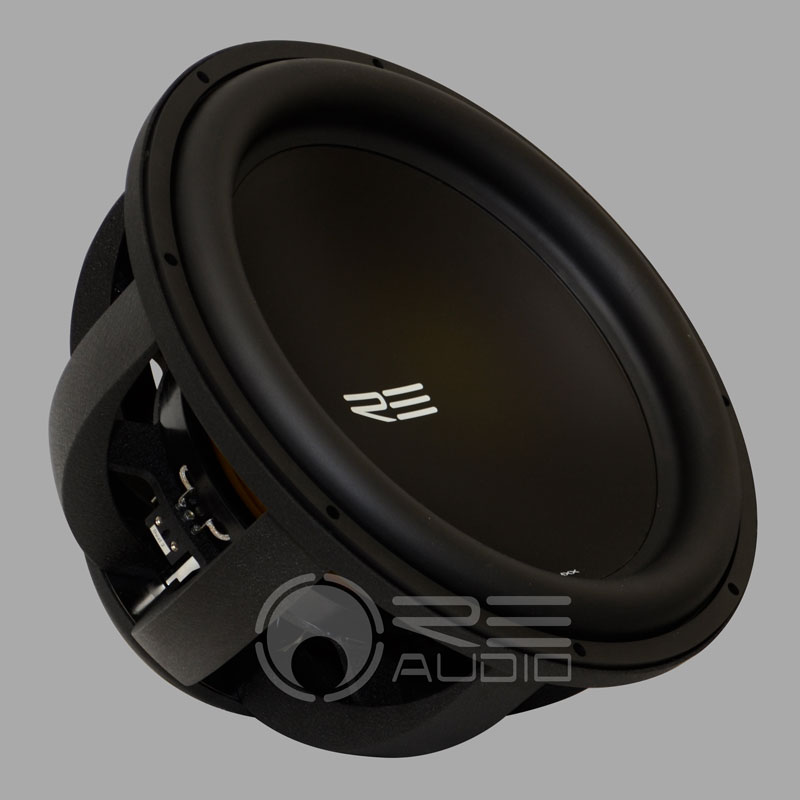

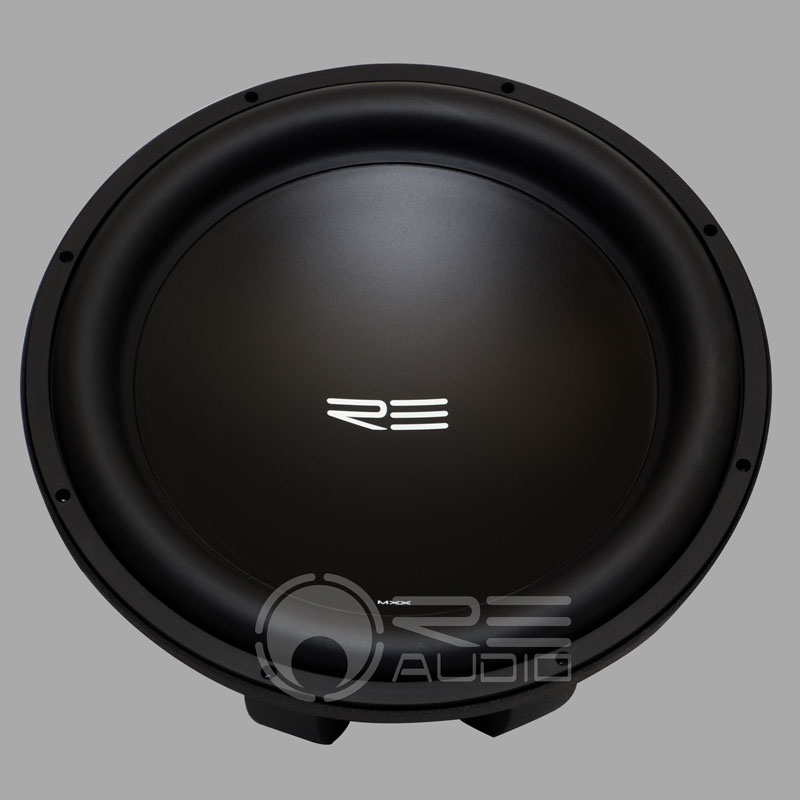

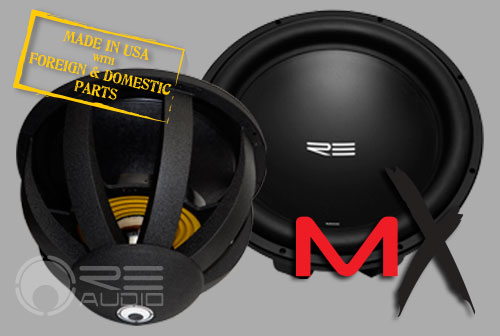

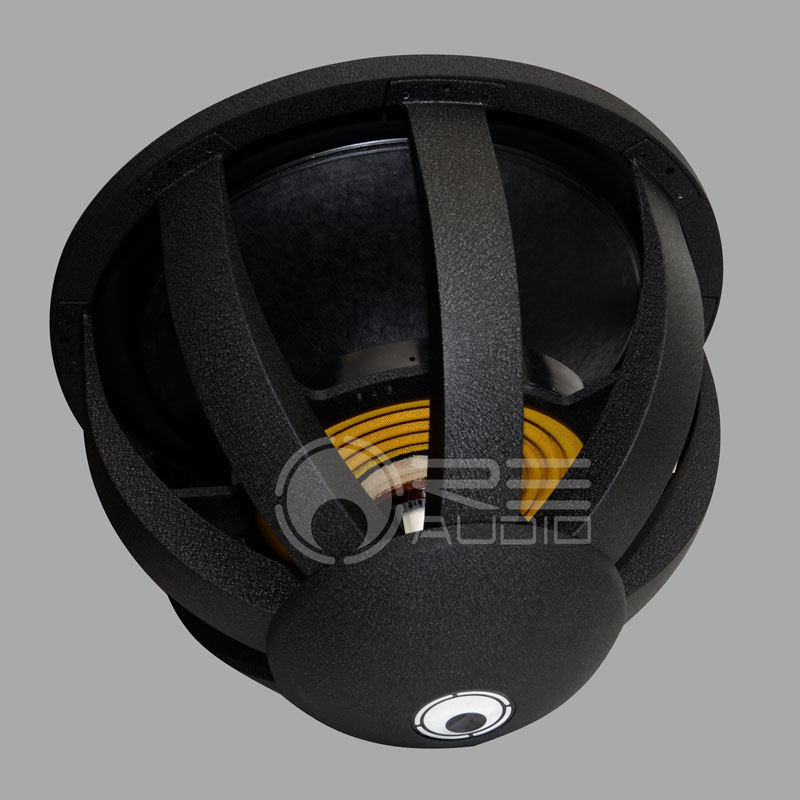

If you like the SXX, you'll love the MX SERIES. There is even greater excursion and power handling with increased accoustical output through a unique "Neo" motor system. Definitely for the "too much is just enough" crowd.
Sizes: 12", 15"," and 18" (Dual 1 or 2 ohm)
- Dual Composite 2-piece Cone
- Ultra Rubber Surround
- Cast Aluminum Basket
- Tork-Tite Terminal
- 4" 4-layer Aluminum Voice Coil
- FEA-optimized Motor Structure
- Powerful "Neo" Magnet
- Dual Progressive Spiders
Enclosure Recommendations
* To Be Announced
Product Dimensions
12"
- Mounting Depth - 10.25 inch
- Mounting Hole Diameter - 11.5 inch
- Overall Diameter - 13 inch
- Bolt Hole Circle - 12.25 inch
- Motor Width - 8.5 inch
- Motor Depth - 2.5 inch
- Basket Depth - 7.75 inch
- Displacement - 0.19 cu. ft.
- Weight - 33 lbs.
15"
- Mounting Depth - 11 inch
- Mounting Hole Diameter - 14.5 inch
- Overall Diameter - 16 inch
- Bolt Hole Circle - 15.25 inch
- Motor Width - 8.5 inch
- Motor Depth - 2.5 inch
- Basket Depth - 8.5 inch
- Displacement - 0.22 cu. ft.
- Weight - 36 lbs.
18"
- Mounting Depth - 12.25 inch
- Mounting Hole Diameter - 17.375 inch
- Overall Diameter - 19 inch
- Bolt Hole Circle - 18.525 inch
- Motor Width - 8.5 inch
- Motor Depth - 2.5 inch
- Basket Depth - 9.75 inch
- Displacement - 0.25 cu. ft.
- Weight - 38 lbs.
T/S Parameters
* To Be Announced
What most other manufacturers do to make a speaker handle torturous digital bass also degrades sound quality. Not so with RE Audio! Now you can play loud and sound great all week, then go compete on the weekend! That's the SXX SERIES.
Sizes: 10", 12", 15", and 18" (Dual 2 or 4 ohm)
- Dual Composite 2-piece Cone
- Rubatek Foam Surround
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3 " 8-layer Aluminum Flat Wire Voice Coil
- FEA Optimized Motor Structure
- Triple Stack Magnets
- Progressive Spiders
- Wrap around Rubber Gasket
Enclosure Recommendations
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 1.0@35Hz | 1.25@34Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 1.5@35Hz | 2.0@33Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 3.0@35Hz | 4.0@34Hz |
| 18" | Compact | Optimal |
|---|---|---|
| Sealed: | N/R | N/R |
| Ported: | 5.5@35Hz | 8.0@34Hz |
*N/R: Not Recommended
Product Dimensions
10"
- Mounting Depth - 6.4 inch
- Mounting Hole Diameter - 9.3 inch
- Overall Diameter - 11 inch
- Bolt Hole Circle - 10.1 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.4 inch
- Basket Depth - 2.94 inch
- Displacement - 0.15 cu. ft.
- Weight - 24 lbs.
12"
- Mounting Depth - 6.9 inch
- Mounting Hole Diameter - 11.2 inch
- Overall Diameter - 12.5 inch
- Bolt Hole Circle - 11.75 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.44 inch
- Basket Depth - 3.46 inch
- Displacement - 0.16 cu. ft.
- Weight - 24.5 lbs.
15"
- Mounting Depth - 8.4 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.5 inch
- Bolt Hole Circle - 14.65 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.6 inch
- Basket Depth - 4.8 inch
- Displacement - 0.18 cu. ft.
- Weight - 27.6 lbs.
18" (comes as SX18)
- Mounting Depth - 9.5 inch
- Mounting Hole Diameter - 16.75 inch
- Overall Diameter - 18.5 inch
- Bolt Hole Circle - 17.5 inch
- Motor Width - 6.5 inch
- Motor Depth - 3.25 inch
- Basket Depth - 6.25 inch
- Displacement - 0.22 cu. ft.
- Weight - 28 lbs.
T/S Parameters
10"
- Electrical Q Value -Qes: 0.29
- Mechanical Q Value -Qms: 4.3
- Total Speaker Q Value -Qts: 0.27
- Free Air Resonance -Fs: 30.7 Hz
- Equivalent Compliance -Vas: 21.8 liters
- One-Way, Linear Excursion -Xmax: 22 mm
- Efficiency -SPL 1W/1m: 85.2 dB SPL
- Effective Piston Area -Sd: 310 cm^2
- DC Resistance -Re: 1.9 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 1000 W
- Force Factor -Bl: 21
12"
- Electrical Q Value -Qes: 0.32
- Mechanical Q Value -Qms: 4.4
- Total Speaker Q Value -Qts: 0.30
- Free Air Resonance -Fs: 30.6 Hz
- Equivalent Compliance -Vas: 47.6 liters
- One-Way, Linear Excursion -Xmax: 22 mm
- Efficiency -SPL 1W/1m: 88.1 dB SPL
- Effective Piston Area -Sd: 480 cm^2
- DC Resistance -Re: 1.9 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 1000 W
- Force Factor -Bl: 21
15"
- Electrical Q Value -Qes: 0.38
- Mechanical Q Value -Qms: 4.7
- Total Speaker Q Value -Qts: 0.38
- Free Air Resonance -Fs: 27.8 Hz
- Equivalent Compliance -Vas: 126.3 liters
- One-Way, Linear Excursion -Xmax: 22 mm
- Efficiency -SPL 1W/1m: 90.4 dB SPL
- Effective Piston Area -Sd: 810 cm^2
- DC Resistance -Re: 1.9 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 1000 W
- Force Factor -Bl: 21
18" (comes as SX18)
- Electrical Q Value -Qes: 0.53
- Mechanical Q Value -Qms: 6.1
- Total Speaker Q Value -Qts: 0.48
- Free Air Resonance -Fs: 33.2 Hz
- Equivalent Compliance -Vas: 159 liters
- One-Way, Linear Excursion -Xmax: 22 mm
- Efficiency -SPL 1W/1m: 92.7 dB SPL
- Effective Piston Area -Sd: 1210 cm^2
- DC Resistance -Re: 1.9 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 1000 W
- Force Factor -Bl: 21
Reproducing that gut-wrenching lower bass register loudly, accurately, and continuously without failure is what you can expect from the SEX SERIES.
Sizes: 10", 12", and 15" (Dual 2 or 4 ohm)
- Dual Composite 2-piece Cone
- Rubatek Foam Surround
- Cast Aluminum Basket
- Tork-Tite Terminal
- 3 " 4-layer Aluminum Voice Coil
- FEA Optimized Motor Structure
- Triple Stack Magnets
- Progressive Spiders
- Wrap around Rubber Gasket
Enclosure Recommendations
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.4 | 0.65 |
| Ported: | 1.0@35Hz | 1.25@34Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.75 | 1.0 |
| Ported: | 1.5@35Hz | 2.0@33Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | 1.5 | 2.0 |
| Ported: | 3.0@35Hz | 4.0@34Hz |
Product Dimensions
10"
- Mounting Depth - 6.4 inch
- Mounting Hole Diameter - 9.3 inch
- Overall Diameter - 11 inch
- Bolt Hole Circle - 10.1 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.4 inch
- Basket Depth - 2.94 inch
- Displacement - 0.14 cu. ft.
- Weight - 21 lbs.
12"
- Mounting Depth - 6.9 inch
- Mounting Hole Diameter - 11.2 inch
- Overall Diameter - 12.5 inch
- Bolt Hole Circle - 11.75 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.44 inch
- Basket Depth - 3.46 inch
- Displacement - 0.15 cu. ft.
- Weight - 21.5 lbs.
15"
- Mounting Depth - 8.4 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.5 inch
- Bolt Hole Circle - 14.65 inch
- Motor Width - 7.3 inch
- Motor Depth - 3.6 inch
- Basket Depth - 4.8 inch
- Displacement - 0.17 cu. ft.
- Weight - 23.5 lbs.
T/S Parameters
10"
- Electrical Q Value -Qes: 0.46
- Mechanical Q Value -Qms: 4.4
- Total Speaker Q Value -Qts: 0.42
- Free Air Resonance -Fs: 26.6 Hz
- Equivalent Compliance -Vas: 31 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 83.2 dB SPL
- Effective Piston Area -Sd: 310 cm^2
- DC Resistance -Re: 2.8 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 600 W
- Force Factor -Bl: 17.7
12"
- Electrical Q Value -Qes: 0.49
- Mechanical Q Value -Qms: 4.5
- Total Speaker Q Value -Qts: 0.44
- Free Air Resonance -Fs: 25.1 Hz
- Equivalent Compliance -Vas: 72.9 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 86.1 dB SPL
- Effective Piston Area -Sd: 480 cm^2
- DC Resistance -Re: 2.8 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 600 W
- Force Factor -Bl: 17.7
15"
- Electrical Q Value -Qes: 0.55
- Mechanical Q Value -Qms: 4.3
- Total Speaker Q Value -Qts: 0.49
- Free Air Resonance -Fs: 22 Hz
- Equivalent Compliance -Vas: 209 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 88 dB SPL
- Effective Piston Area -Sd: 810 cm^2
- DC Resistance -Re: 2.8 ohm
- Nominal Impedance -Znom: Dual 2 or 4 ohm
- Thermal Power Handling -Pe: 600 W
- Force Factor -Bl: 17.7

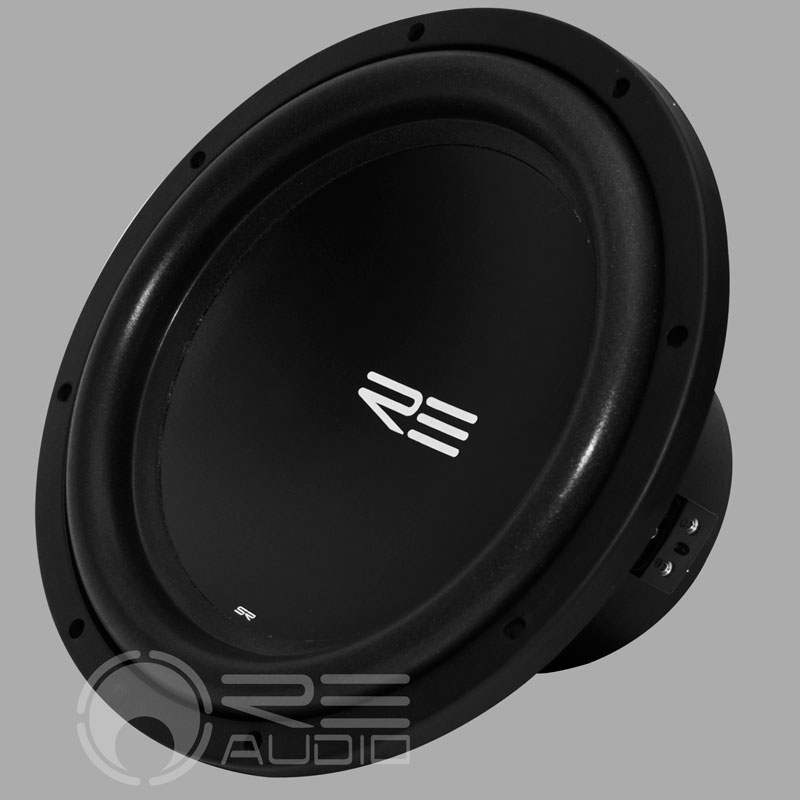

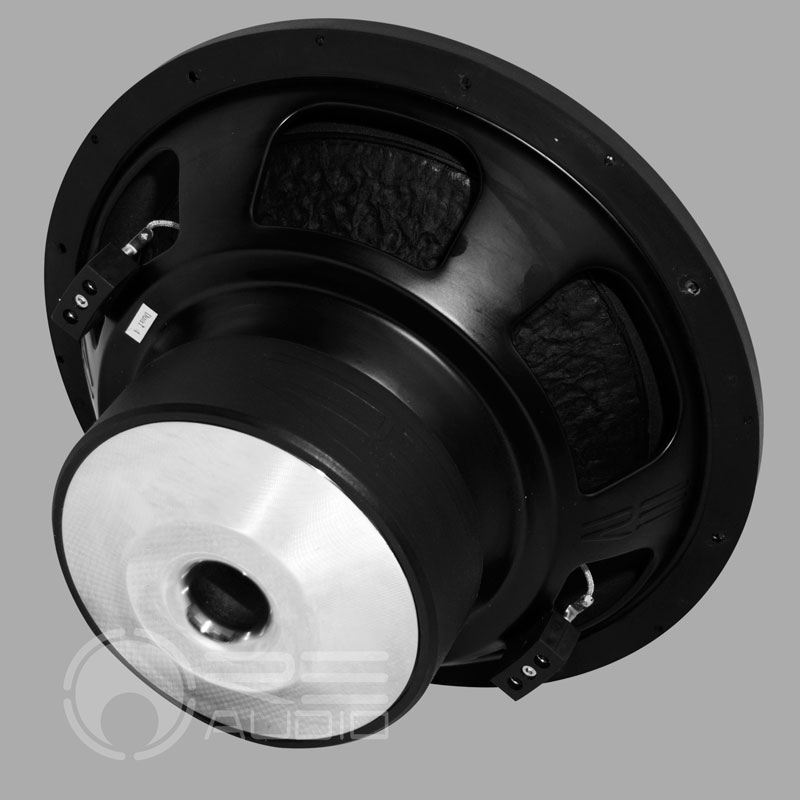

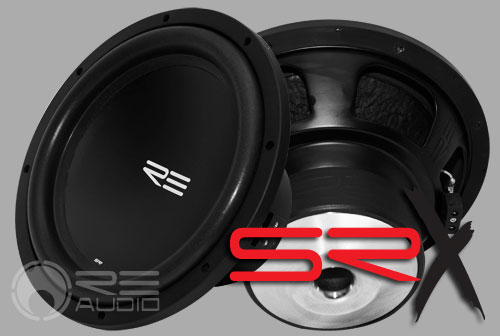

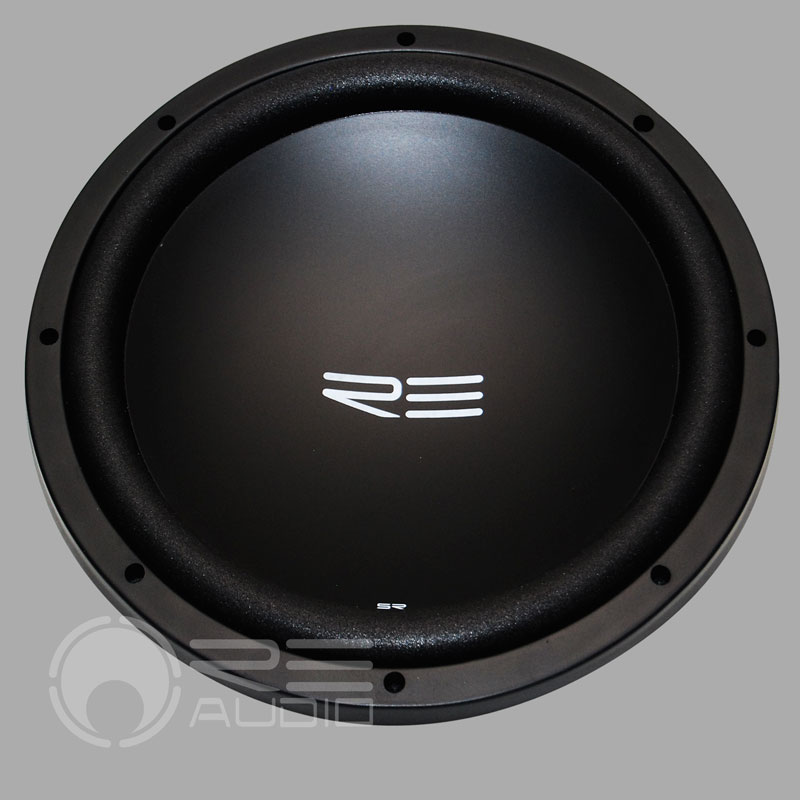

Expect MONSTER Performance from our SRX SERIES with double the power handling, striking cosmetics, and increased audio output over our REX series
Sizes: 10", 12", and 15" (Dual 2 or 4 ohm)
- Kraft Pulp Cone
- Rubatek Foam Surround
- Pressed Steel Basket
- 4-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Double Stack Magnets
- Linear Spiders
- Foam Gasket
Enclosure Recommendations
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.35 | 0.5 |
| Ported: | 0.65@35Hz | 1.0@35Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.5 | 0.75 |
| Ported: | 1.25@35Hz | 1.5@35Hz |
| 15" | Compact | Optimal |
|---|---|---|
| Sealed: | 1.5 | 2.0 |
| Ported: | 2.5@35Hz | 3.0@34Hz |
Product Dimensions
10"
- Mounting Depth - 6 inch
- Mounting Hole Diameter - 9.3 inch
- Overall Diameter - 10.9 inch
- Bolt Hole Circle - 10 inch
- Motor Width - 6.7 inch
- Motor Depth - 3 inch
- Basket Depth - 3 inch
- Displacement - 0.12 cu. ft.
- Weight - 15.4 lbs.
12"
- Mounting Depth - 6.5 inch
- Mounting Hole Diameter - 11 inch
- Overall Diameter - 12.8 inch
- Bolt Hole Circle - 12 inch
- Motor Width - 6.7 inch
- Motor Depth - 3 inch
- Basket Depth - 3.5 inch
- Displacement - 0.14 cu. ft.
- Weight - 16 lbs.
15"
- Mounting Depth - 7.9 inch
- Mounting Hole Diameter - 14 inch
- Overall Diameter - 15.6 inch
- Bolt Hole Circle - 14.7 inch
- Motor Width - 6.7 inch
- Motor Depth - 3 inch
- Basket Depth - 4.9 inch
- Displacement - 0.16 cu. ft.
- Weight - 16.5 lbs.
T/S Parameters
10"
- Electrical Q Value -Qes: 0.39
- Mechanical Q Value -Qms: 5.5
- Total Speaker Q Value -Qts: 0.36
- Free Air Resonance -Fs: 25.3 Hz
- Equivalent Compliance -Vas: 31 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 85.3 dB SPL
- Effective Piston Area -Sd: 310 cm^2
- DC Resistance -Re: 1.8 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 300 W
- Force Factor -Bl: 14.35
12"
- Electrical Q Value -Qes: 0.41
- Mechanical Q Value -Qms: 4.99
- Total Speaker Q Value -Qts: 0.38
- Free Air Resonance -Fs: 23.6 Hz
- Equivalent Compliance -Vas: 85 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 86.2 dB SPL
- Effective Piston Area -Sd: 480 cm^2
- DC Resistance -Re: 1.8 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 300 W
- Force Factor -Bl: 14.35
15"
- Electrical Q Value -Qes: 0.45
- Mechanical Q Value -Qms: 4.87
- Total Speaker Q Value -Qts: 0.41
- Free Air Resonance -Fs: 23 Hz
- Equivalent Compliance -Vas: 203 liters
- One-Way, Linear Excursion -Xmax: 18 mm
- Efficiency -SPL 1W/1m: 87.6 dB SPL
- Effective Piston Area -Sd: 810 cm^2
- DC Resistance -Re: 1.8 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 300 W
- Force Factor -Bl: 14.35

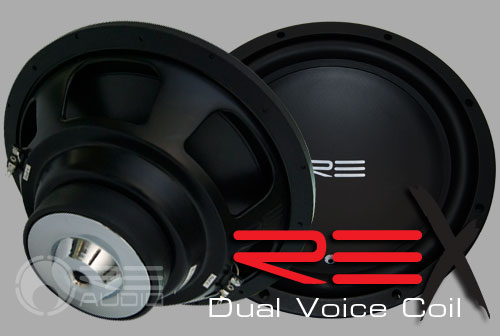

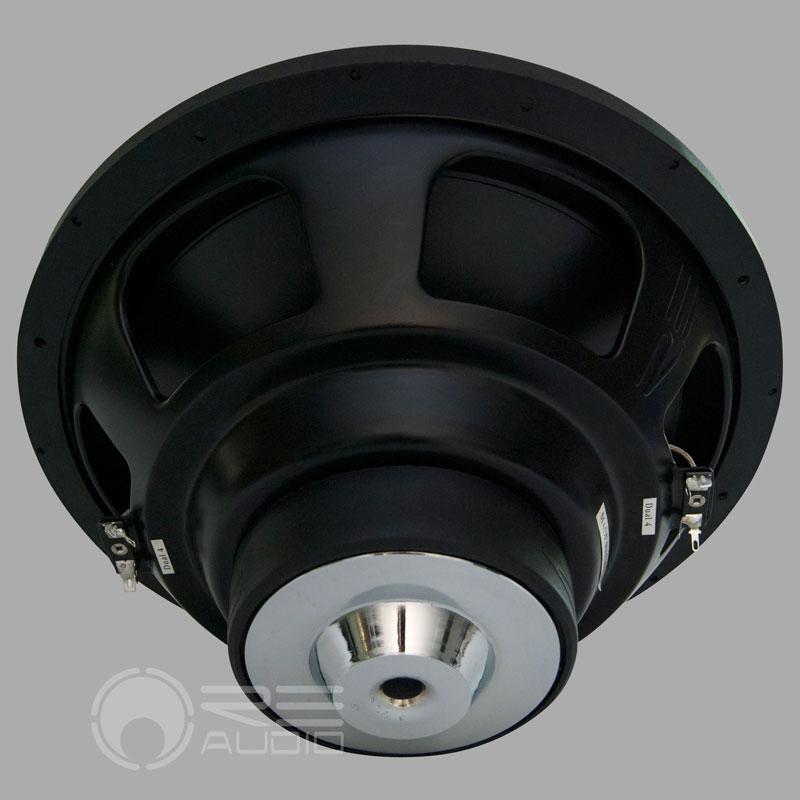

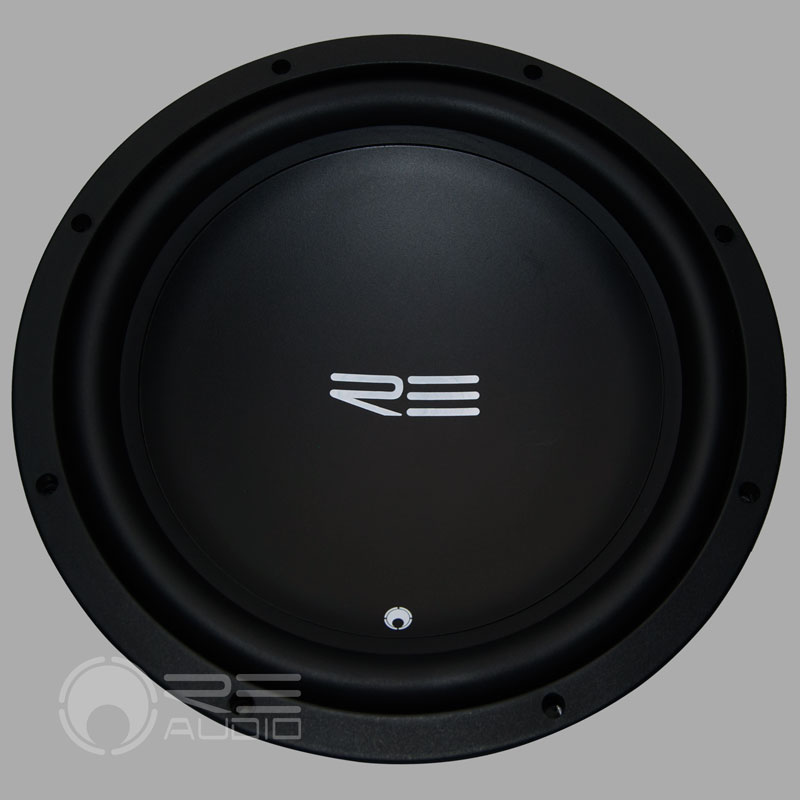

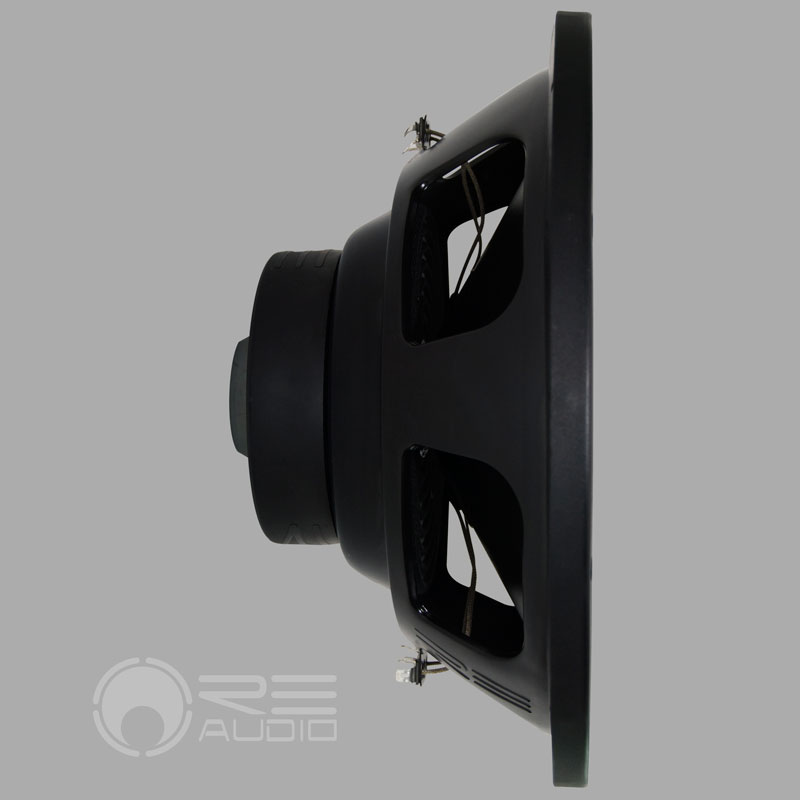

The REX SERIES with Dual Voice Coil offers incredible output and distortion free sound you would expect from subs costing you far more.
Sizes: 8", 10", and 12" (Dual 4 ohm)
- Mica Filled Poly Cone
- Santoprene Rubber Surround
- Pressed Steel Basket
- High Temp 8-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Single Magnet
- Linear Conex Spiders
- Foam Gasket
Enclosure Recommendations
| 8" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.3 | 0.35 |
| Ported: | 0.35@35Hz | 0.5@35Hz |
| 10" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.35 | 0.5 |
| Ported: | 0.65@35Hz | 1.0@35Hz |
| 12" | Compact | Optimal |
|---|---|---|
| Sealed: | 0.4 | 0.75 |
| Ported: | 1.25@35Hz | 1.5@35Hz |
Product Dimensions
8"
- Mounting Depth - 4.5 inch
- Mounting Hole Diameter - 7.3 inch
- Overall Diameter - 8.7 inch
- Bolt Hole Circle - 8 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 2.4 inch
- Displacement - 0.07 cu. ft.
- Weight - 6.2 lbs.
10"
- Mounting Depth - 5 inch
- Mounting Hole Diameter - 9.3 inch
- Overall Diameter - 10.9 inch
- Bolt Hole Circle - 10.5 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 3 inch
- Displacement - 0.09 cu. ft.
- Weight - 6.8 lbs.
12"
- Mounting Depth - 5.5 inch
- Mounting Hole Diameter - 11 inch
- Overall Diameter - 12.8 inch
- Bolt Hole Circle - 12 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 3.5 inch
- Displacement - 0.10 cu. ft.
- Weight - 7.5 lbs.
T/S Parameters
8"
- Electrical Q Value -Qes: 0.38
- Mechanical Q Value -Qms: 4.21
- Total Speaker Q Value -Qts: 0.34
- Free Air Resonance -Fs: 22.8 Hz
- Equivalent Compliance -Vas: 27.1 liters
- One-Way, Linear Excursion -Xmax: 12 mm
- Efficiency -SPL 1W/1m: 81.2 dB SPL
- Effective Piston Area -Sd: 195 cm^2
- DC Resistance -Re: 3.2 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 15.4
10"
- Electrical Q Value -Qes: 0.39
- Mechanical Q Value -Qms: 4.37
- Total Speaker Q Value -Qts: 0.36
- Free Air Resonance -Fs: 21.5 Hz
- Equivalent Compliance -Vas: 75.6 liters
- One-Way, Linear Excursion -Xmax: 12 mm
- Efficiency -SPL 1W/1m: 84.7 dB SPL
- Effective Piston Area -Sd: 322 cm^2
- DC Resistance -Re: 3.2 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 15.4
12"
- Electrical Q Value -Qes: 0.42
- Mechanical Q Value -Qms: 4.27
- Total Speaker Q Value -Qts: 0.38
- Free Air Resonance -Fs: 20.0 Hz
- Equivalent Compliance -Vas: 182 liters
- One-Way, Linear Excursion -Xmax: 12 mm
- Efficiency -SPL 1W/1m: 87.3 dB SPL
- Effective Piston Area -Sd: 500 cm^2
- DC Resistance -Re: 3.2 ohm
- Nominal Impedance -Znom: Dual 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 15.4

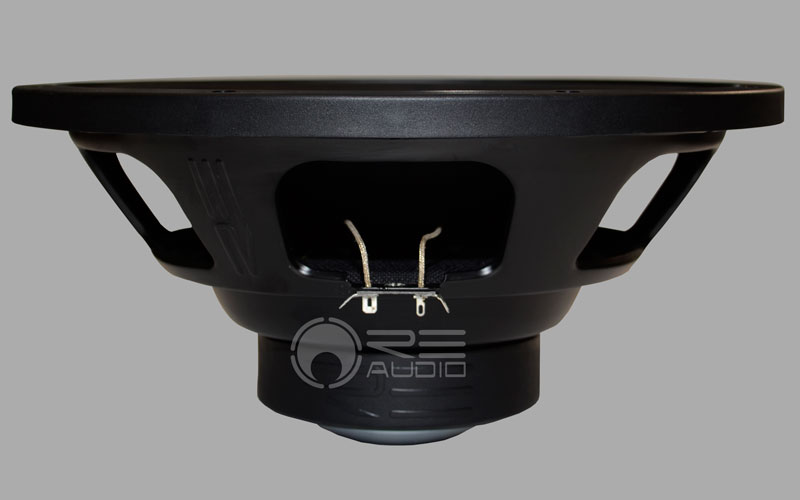

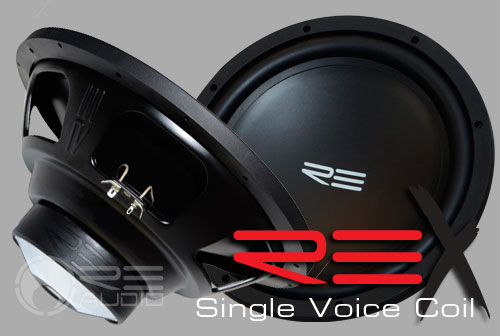

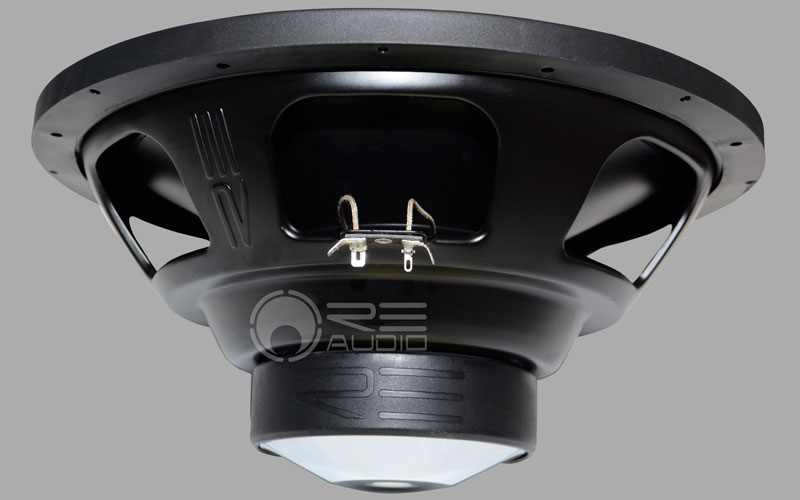

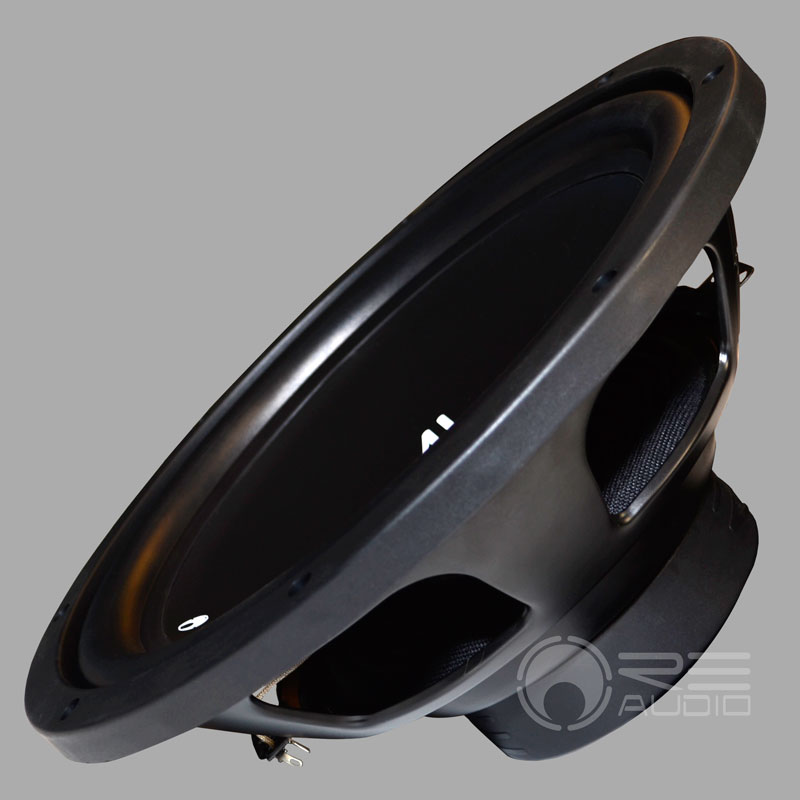

The REX SERIES with Single Voice Coil produces unbelievably clear and deep sound which rejuvenates your hearing experience.
Sizes: 8", 10", and 12" (Single 4 ohm)
- Mica Filled Poly Cone
- Santoprene Rubber Surround
- Pressed Steel Basket
- High Temp 6-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Single Magnet
- Linear Conex Spiders
- Foam Gasket
Enclosure Recommendations
| 8" | Compact | Standard | ||
|---|---|---|---|---|
| Gross Internal Volume (Sealed) [ft3/liters]* | ||||
| 0.44/12.46 | 0.74/18.41 | |||
| Gross Internal Volume (Ported) [ft3/liters]* | ||||
| 1.14/32.28 | 1.41/39.93 | |||
| Port Area [in3/cm3] | ||||
| 7.0/45.16 | 9.62/62.07 | |||
| Port Length [in/cm] | ||||
| 12.57/31.93 | 13.25/33.66 | |||
| Volume of Port Displacement [ft3/liters] | ||||
| 0.05/1.42 | 0.07/1.98 | |||
| Volume Displacement of Driver [ft3/liters] | ||||
| 0.09/2.55 | 0.09/2.55 | |||
| 10" | Compact | Standard | ||
|---|---|---|---|---|
| Gross Internal Volume (Sealed) [ft3/liters]* | ||||
| 0.86/24.35 | 1.0/25.49 | |||
| Gross Internal Volume (Ported) [ft3/liters]* | ||||
| 1.14/32.28 | 1.44/40.78 | |||
| Port Area [in3/cm3] | ||||
| 7.0/45.16 | 9.62/62.07 | |||
| Port Length [in/cm] | ||||
| 12.57/31.93 | 13.5/34.29 | |||
| Volume of Port Displacement [ft3/liters] | ||||
| 0.05/1.42 | 0.08/2.27 | |||
| Volume Displacement of Driver [ft3/liters] | ||||
| 0.11/3.11 | 0.11/3.11 | |||
| 12" | Compact | Standard | ||
|---|---|---|---|---|
| Gross Internal Volume (Sealed) [ft3/liters]* | ||||
| 1.12/31.72 | 1.62/48.48 | |||
| Gross Internal Volume (Ported) [ft3/liters]* | ||||
| 1.73/48.99 | 2.16/61.66 | |||
| Port Area [in3/cm3] | ||||
| 12.57/81.10 | 15.9/102.58 | |||
| Port Length [in/cm] | ||||
| 16.0/40.64 | 15.2/38.61 | |||
| Volume of Port Displacement [ft3/liters] | ||||
| 0.11/3.11 | 0.14/3.96 | |||
| Volume Displacement of Driver [ft3/liters] | ||||
| 0.12/3.40 | 0.12/3.40 | |||
*includes volume displacement of the driver
Product Dimensions
8"
- Mounting Depth - 4.5 inch
- Mounting Hole Diameter - 7.3 inch
- Overall Diameter - 8.7 inch
- Bolt Hole Circle - 8 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 2.4 inch
- Displacement - 0.07 cu. ft.
- Weight - 6.2 lbs.
10"
- Mounting Depth - 5 inch
- Mounting Hole Diameter - 9.3 inch
- Overall Diameter - 10.9 inch
- Bolt Hole Circle - 10.5 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 3 inch
- Displacement - 0.09 cu. ft.
- Weight - 6.8 lbs.
12"
- Mounting Depth - 5.5 inch
- Mounting Hole Diameter - 11 inch
- Overall Diameter - 12.8 inch
- Bolt Hole Circle - 12 inch
- Motor Width - 4.875 inch
- Motor Depth - 1.9 inch
- Basket Depth - 3.5 inch
- Displacement - 0.10 cu. ft.
- Weight - 7.5 lbs.
T/S Parameters
8"
- Electrical Q Value -Qes: 0.44
- Mechanical Q Value -Qms: 8.36
- Total Speaker Q Value -Qts: 0.42
- Free Air Resonance -Fs: 24.5 Hz
- Equivalent Compliance -Vas: 23.9 liters
- One-Way, Linear Excursion -Xmax: 13 mm
- Efficiency -SPL 1W/1m: 82.63 dB SPL
- DC Resistance -Re: 3.74 ohm
- Nominal Impedance -Znom: Single 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 11.95
10"
- Electrical Q Value -Qes: 0.62
- Mechanical Q Value -Qms: 5.60
- Total Speaker Q Value -Qts: 0.56
- Free Air Resonance -Fs: 23.86 Hz
- Equivalent Compliance -Vas: 48.16 liters
- One-Way, Linear Excursion -Xmax: 13 mm
- Efficiency -SPL 1W/1m: 84.35 dB SPL
- DC Resistance -Re: 3.59 ohm
- Nominal Impedance -Znom: Single 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 11.62
12"
- Electrical Q Value -Qes: 0.83
- Mechanical Q Value -Qms: 5.37
- Total Speaker Q Value -Qts: 0.72
- Free Air Resonance -Fs: 24.12 Hz
- Equivalent Compliance -Vas: 69.72 liters
- One-Way, Linear Excursion -Xmax: 13 mm
- Efficiency -SPL 1W/1m: 84.54 dB SPL
- DC Resistance -Re: 3.69 ohm
- Nominal Impedance -Znom: Single 4 ohm
- Thermal Power Handling -Pe: 175 W
- Force Factor -Bl: 12.36
- Phone: 626.839.2300
- Fax: 626.839.2310
- Sales: sales@usamps.com
- Tech: tech@usamps.com • 626.733.7009
- 17749 Valley Blvd • City of Industry • CA 91744
- Home
- Products
- Dealers•Distributors•Reps
- Gallery
- Goodies
- RE Pro
- © Copyright 2013 reaudio.com. All Rights Reserved.
