| Mini Beasts are very compact, but don’t let their size fool you! |
The new SA amplifiers set a high point in industrial design: black military-style amplifier chassis and curved, cast art deco side plates. On the test bench they "doubled down," increasing power output as the impedance load dropped. Its separate chassis and signal ground minimize noise for listening at low levels. Though the SA series rated into loads under 1 ohm, its current-feedback output-stage design is to remain stable into .6 ohm loads. - Made in Korea
reaudio.com |
 |
|

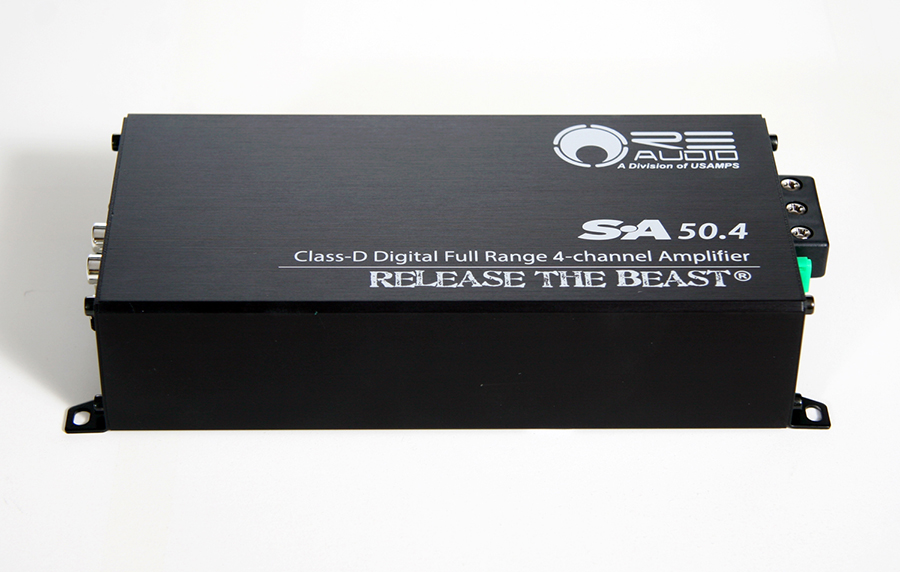

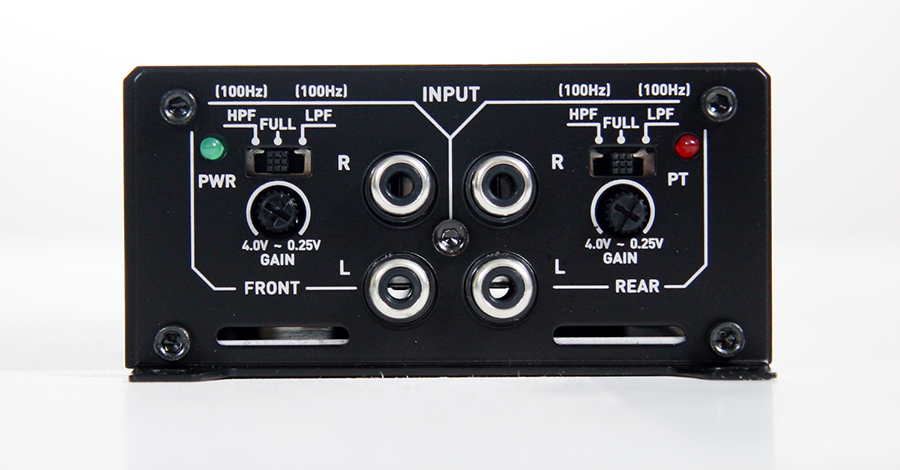

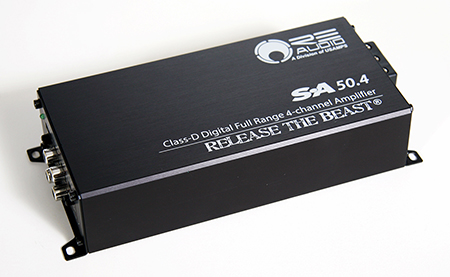

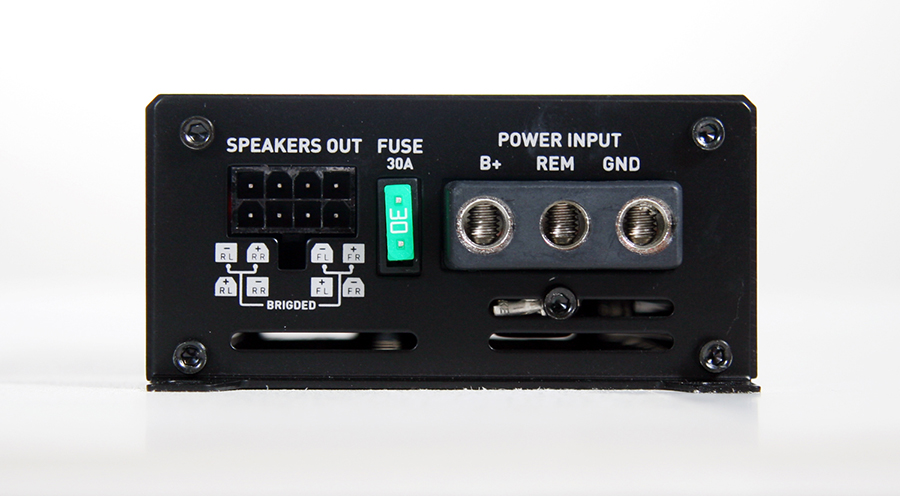

| SA 50.4 ( 4Ch / Full Digital Car Amplifier ) |
|
| 4-Channel, Full Digital Car Amplifier |
|
- SKU # : SA 50.4
- Class : Full Digital Car Amplifier
- Channel : 4 CH
- 4 or 2 CH Operation
- Max Power : 600 W
- RMS Power (4Ω@14.4V) : 50 W x 4
- RMS Power (2Ω@14.4V) : 75 W x 4
- RMS Bridged Power (4Ω) : 154 W x 2
- THD : <0.05 %
- SN Ration : 80 dB
- Frequency Response : 10 Hz ~ 40 KHz
- Variable high-pass filter : 80 Hz, 12 dB/oct
- Variable low-pass filter : 80 Hz, 12 dB/oct
- Input Sensitivity : 0.25 V ~ 6 V
- Dimensions(WxLxH) [inches] : 3.56 x 7.1 x 1.67
- Dimensions(WxLxH) [mm] : 90.42 x 180.34 x 42.42
- Weight (LBS/KG) : 2.9 / 1.31
- CEA-2006 compliant amplifier
|
| |
|
|
|
|

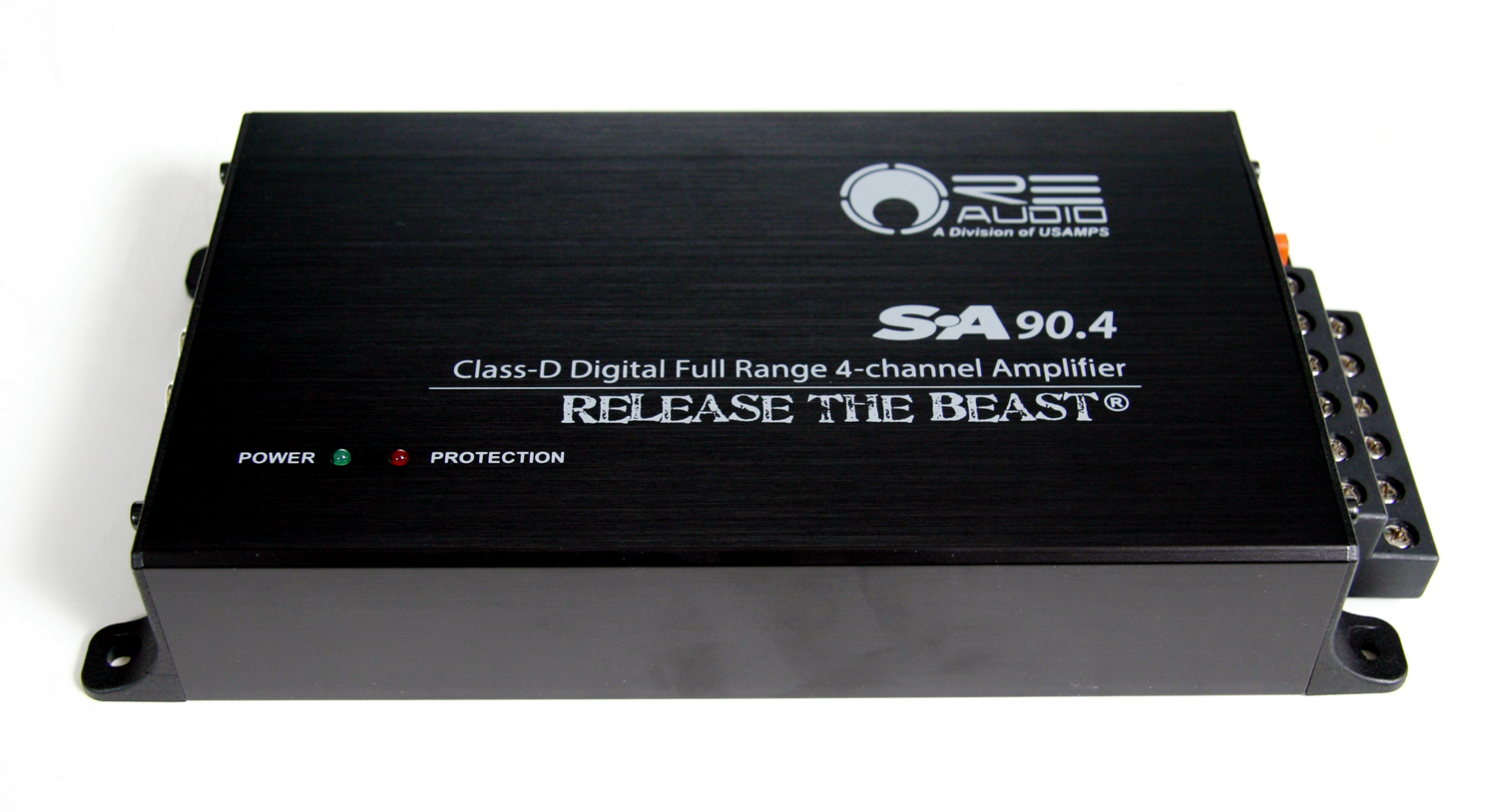

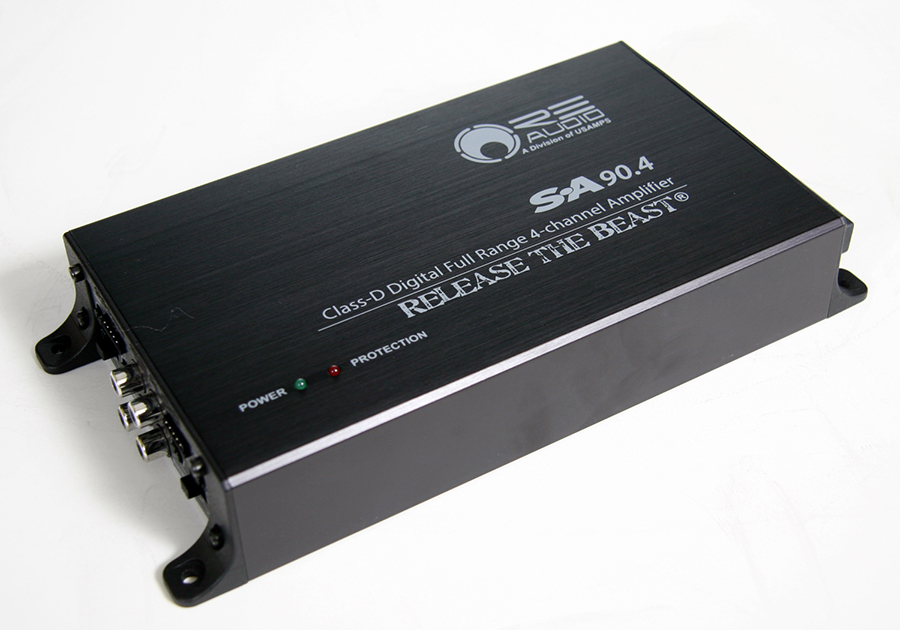

| SA 90.4 ( 4Ch / Full Digital Car Amplifier ) |
|
| 4-Channel, Full Digital Car Amplifier |
|
- SKU # : SA 90.4
- Class : Full Digital Car Amplifier
- Channel : 4 CH
- 4 or 2 CH Operation
- Max Power : 800 W
- RMS Power (4Ω@14.4V) : 63 W x 4
- RMS Power (2Ω@14.4V) : 85 W x 4
- RMS Bridged Power (4Ω) : 151 W x 2
- THD : <0.05 %
- SN Ration : 80 dB
- Frequency Response : 10 Hz ~ 40 KHz
- Variable high-pass filter : 80 Hz, 12 dB/oct
- Variable low-pass filter : 80 Hz, 12 dB/oct
- Input Sensitivity : 0.25 V ~ 6 V
- Auto Turn on when using hi level input
- Speaker-level (high-level) inputs
- Dimensions(WxLxH) [inches] : 4.72 x 7.87 x 1.57
- Dimensions(WxLxH) [mm] : 119.89 x 199.90 x 39.88
- Weight (LBS/KG) : 3.35 / 1.52
- CEA-2006 compliant amplifier
|
| |
|
|
|
|

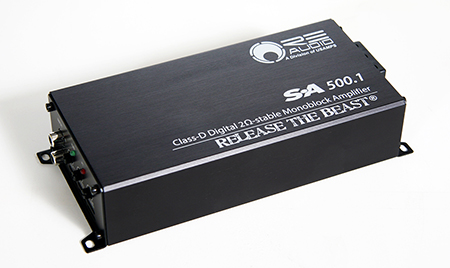

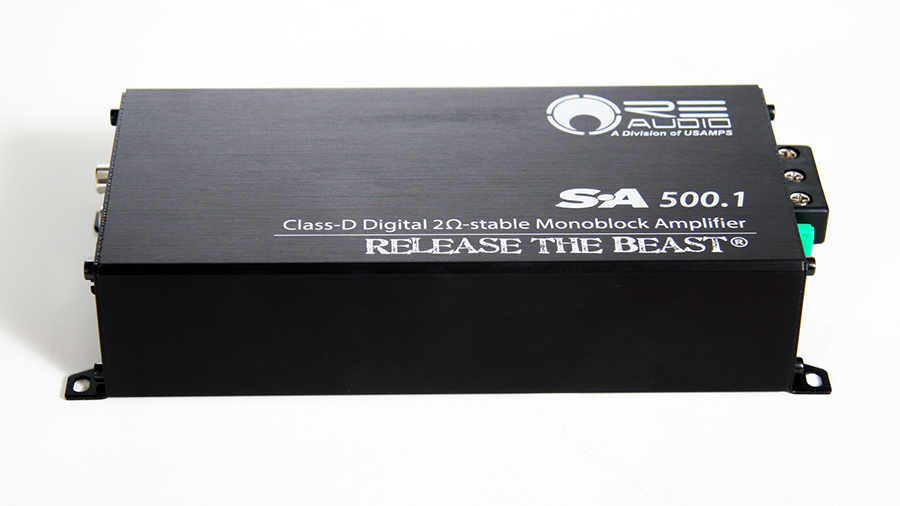

| SA 500.1 ( Mono / Class - D ) |
|
| Class D, Monoblock Car Amplifier |
|
- SKU # : SA 500.1
- Class : D
- Channel : 1 CH
- Mono CH Operation
- Max Power : 500 W
- RMS Power (4Ω@14.4V) : 150 W x 1
- RMS Power (2Ω@14.4V) : 250W x 1
- RMS Power (1Ω) : 500 W x 1
- THD : <0.05 %
- SN Ration : 80 dB
- Frequency Response : 10 Hz ~ 40 KHz
- Variable high-pass filter : 80 Hz, 12 dB/oct
- Variable low-pass filter : 80 Hz, 12 dB/oct
- Input Sensitivity : 0.25 V ~ 6 V
- Dimensions(WxLxH) [inches] : 3.56 x 7.1 x 1.67
- Dimensions(WxLxH) [mm] : 90.42 x 180.34 x 42.42
- Weight (LBS/KG) : 2.2 / 1.00
- CEA-2006 compliant amplifier
|
|
|
|
|

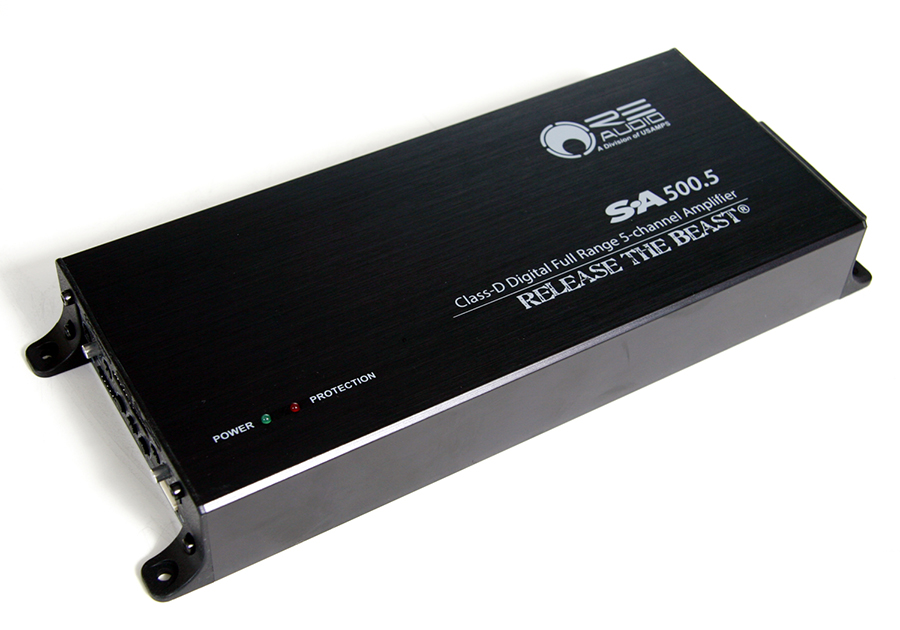

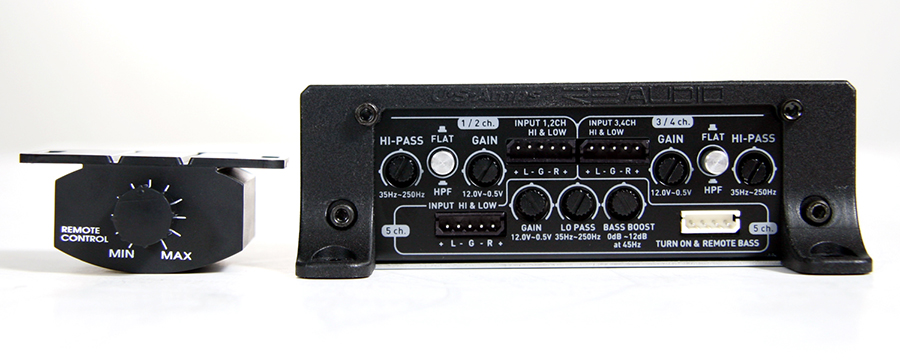

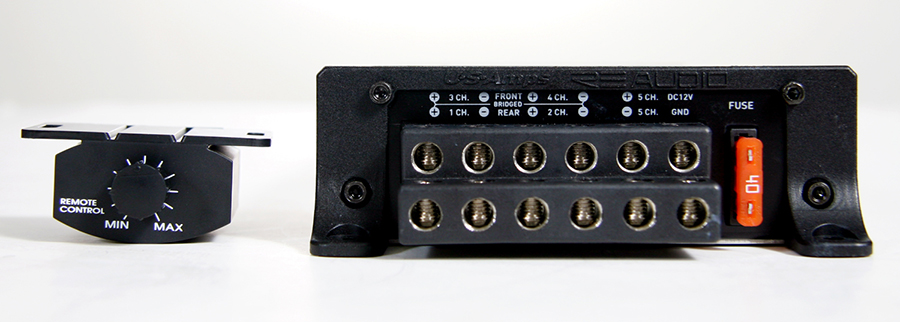

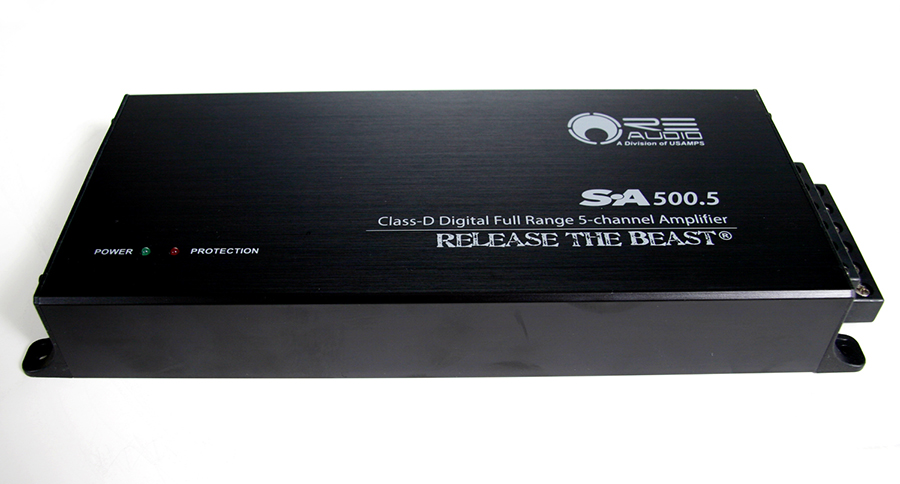

| SA 500.5 ( 5Ch / Full Digital Car Amplifier ) |
|
| 5-Channel Full Digital Car Amplifier |
|
- SKU # : SA 500.5
- Class : Full Digital Car Amplifier
- Channel : 5 CH
- 5 / 4 / 3 / 2 or Mono CH Operation
- Max Power Output : 1600 W
- RMS Power (4Ω@14.4V) : 63 W x 4
- RMS Power (2Ω@14.4V) : 85 W x 4
- RMS Bridged Power (4Ω) : 302 W x 2
- Subwoofer CH RMS Power (4Ω) : 180 W x 1
- Subwoofer CH RMS Power (2Ω) : 280 W x 1
- Subwoofer CH RMS Power (1Ω) : 400 W x 1
- THD : <0.05 %
- SN Ration : 80db
- Frequency Response : 10 Hz ~ 20 KHz
- Variable high-pass filter : 35 Hz ~ 250 Hz
- Variable low-pass filter : 35 Hz ~ 250 Hz
- Input Sensitivity : 0.25 V ~ 6 V
- Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz
- Auto Turn on when using hi level input
- Speaker-level (high-level) inputs
- Wired remote bass level control included
- Dimensions(WxLxH) [inches] : 4.72 x 10.24 x 1.57
- Dimensions(WxLxH) [mm] : 119.89 x 260.10 x 39.88
- Weight (LBS/KG) : 4.63 / 2.10
- CEA-2006 compliant amplifier
|
|
|
|
|

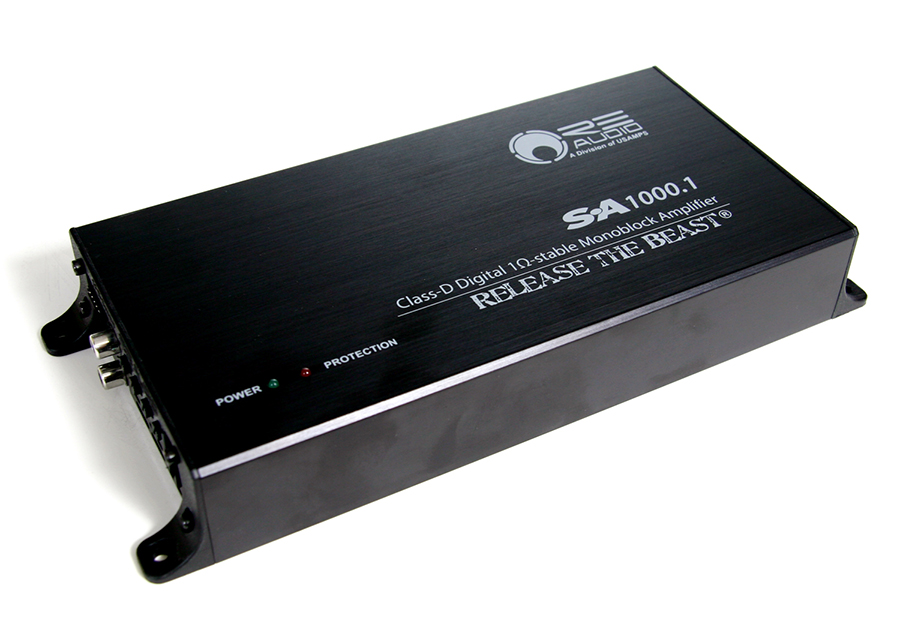

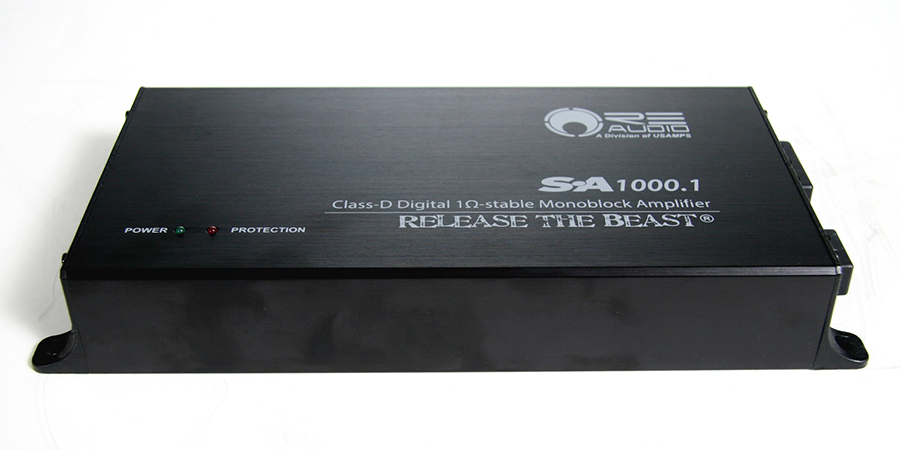

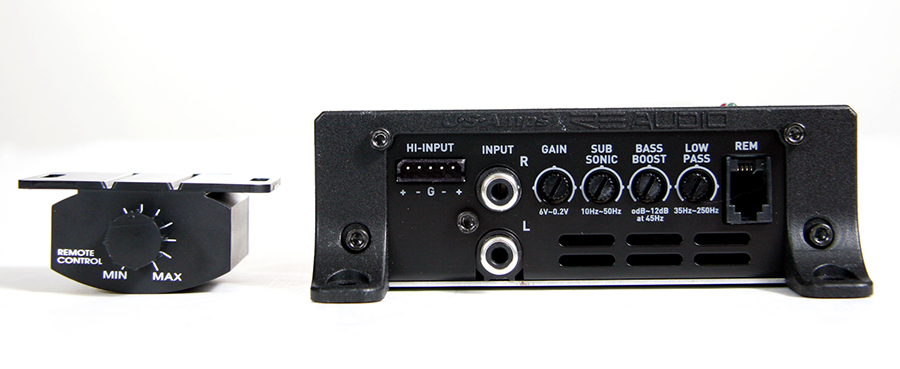

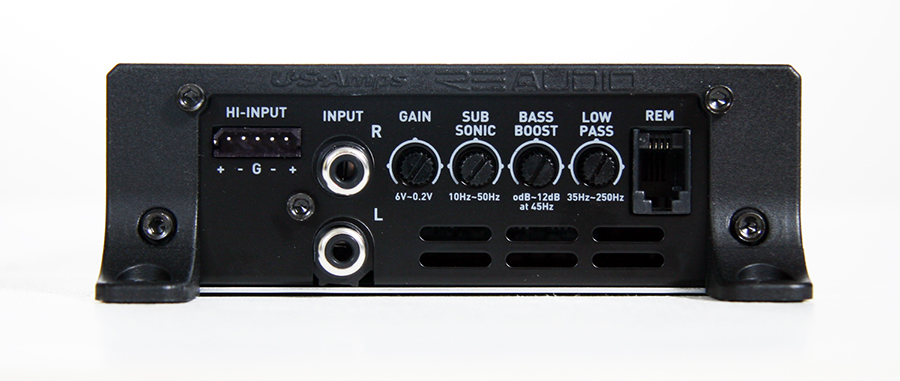

| SA 1000.1 ( Mono / Class - D ) |
|
| Class D, Monoblock Car Amplifier |
|
- SKU # : SA 1000.1
- Class : D
- Channel : 1 CH
- Mono CH Operation
- Max Power : 1400 W
- RMS Power (4Ω@14.4V) : 200 W x 1
- RMS Power (2Ω@14.4V) : 300 W x 1
- RMS Power (1Ω@14.4V) : 700 W x 1
- THD : <0.05 %
- SN Ration : 80db
- Frequency Response : 10-250 hz
- Variable Subsonic filter : 10 Hz ~ 50 Hz, 24 dB/oct)
- Variable low-pass filter : 50 Hz ~ 250Hz, 24 dB/oct)
- Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz
- Auto Turn on when using hi level input
- Speaker-level (high-level) inputs
- Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Remote bass level control included
- Nickel-plated RCA level inputs
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dimensions(WxLxH) [inches] : 4.72 x 9.05 x 1.57
- Dimensions(WxLxH) [mm] : 119.89 x 229.87 x 39.88
- Weight (LBS/KG) : 3.97 / 1.80
- CEA-2006 compliant amplifier
|
|
|
|
|

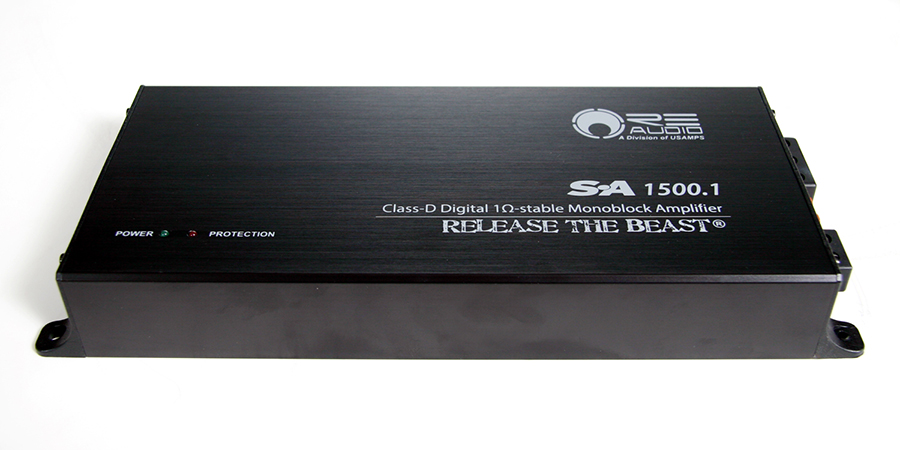

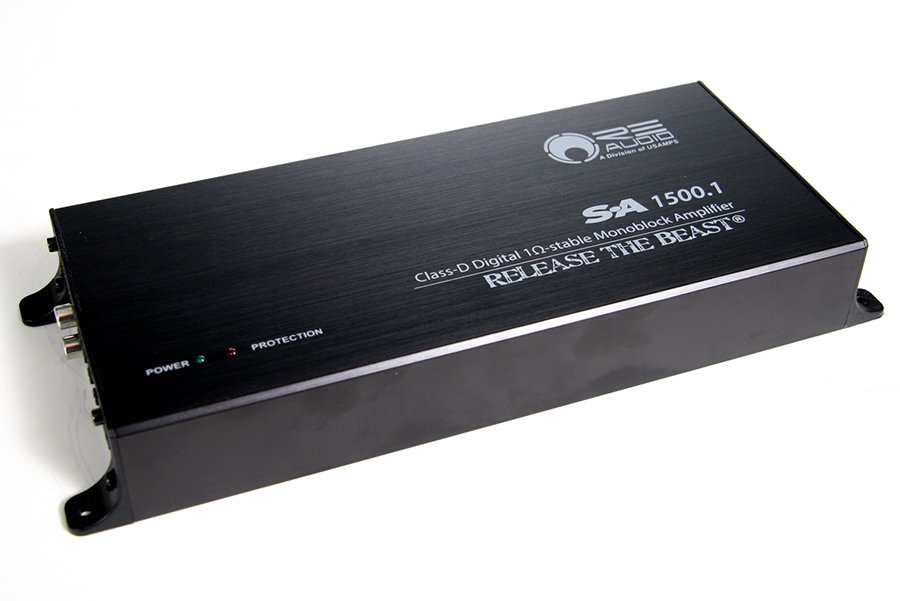

| SA 1500.1 ( Mono / Class - D ) |
|
| Class D, Monoblock Car Amplifier |
|
- SKU # : SA 1500.1
- Class : D
- Channel : 1 CH
- Mono CH Operation
- Max Power : 1800 W
- RMS Power (4Ω@14.4V) : 280 W x 1
- RMS Power (2Ω@14.4V) : 500 W x 1
- RMS Power (1Ω@14.4V) : 900 W x 1
- THD : <0.05 %
- SN Ration : 80db
- Frequency Response : 10-250hz
- Variable Subsonic filter : 10 Hz ~ 50 Hz, 24 dB/oct)
- Variable low-pass filter : 50 Hz ~ 250Hz, 24 dB/oct)
- Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz
- Auto Turn on when using hi level input
- Speaker-level (high-level) inputs
- Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Remote bass level control included
- Nickel-plated RCA level inputs
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dimensions(WxLxH) [inches] : 4.72 x 10.24 x 1.57
- Dimensions(WxLxH) [mm] : 119.89 x 260.10 x 39.88
- Weight (LBS/KG) : 4.63 / 2.10
- CEA-2006 compliant amplifier
|
|
|
|
|

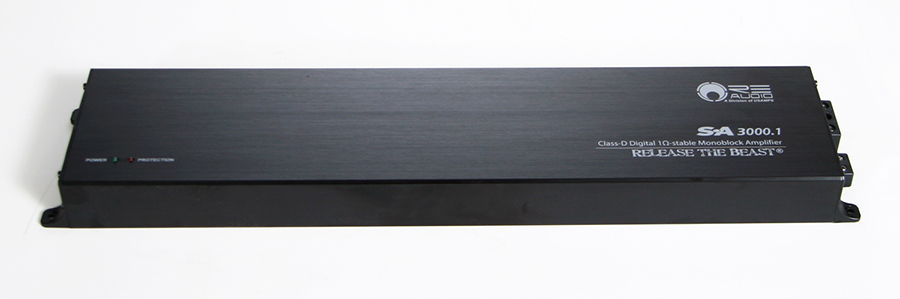

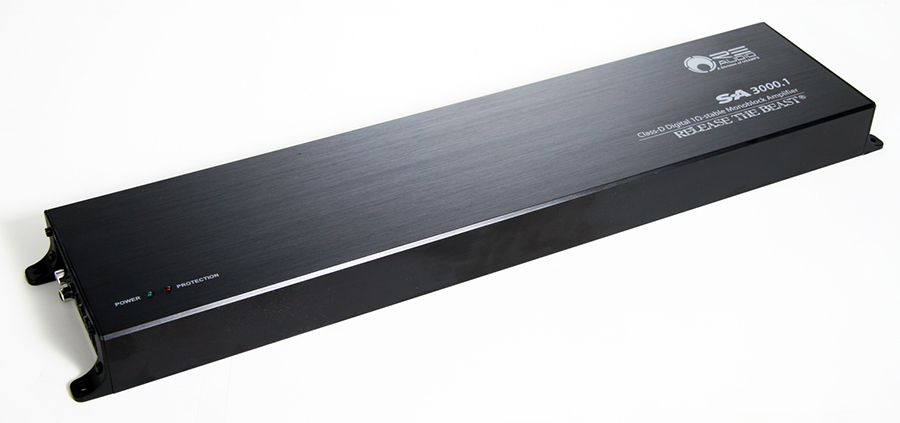

| SA 3000.1 ( Mono / Class - D ) |
|
| Class D, Monoblock Car Amplifier |
|
- SKU # : SA 3000.1
- Class : D
- Channel : 1 CH
- Mono CH Operation
- Max Power : 4000 W
- RMS Power (4Ω@14.4V) : 610 W x 1
- RMS Power (2Ω@14.4V) : 1080 W x 1
- RMS Power (1Ω@14.4V) : 1820 W x 1
- THD : <0.05 %
- SN Ration : 80db
- Frequency Response : 10Hz ~ 250Hz
- Variable Subsonic filter : 10 Hz ~ 50 Hz, 24 dB/oct)
- Variable low-pass filter : 50 Hz ~ 250Hz, 24 dB/oct)
- Variable Bass Boost : 0 to +12 dB bass boost at 45 Hz
- Auto Turn on when using hi level input
- Speaker-level (high-level) inputs
- Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Remote bass level control included
- Nickel-plated RCA level inputs
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dimensions(WxLxH) [inches] : 4.72x 19.07 x 1.57
- Dimensions(WxLxH) [mm] : 119.89 x 484.38 x 39.88
- Weight (LBS/KG) : 9.92 / 4.49
- CEA-2006 compliant amplifier
|
|
|
|
| |
|
|
